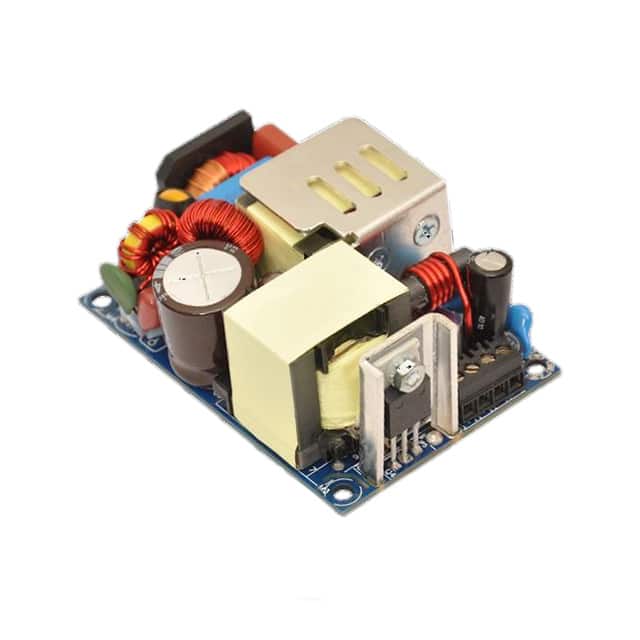

The Bel Power Solutions ABC120 Series, including the ABC120-1T58L, offers open frame AC/DC power supplies designed for a wide range of applications. This specific model provides a 58V output voltage with a maximum current of 1.72A, delivering 100W of power under convection cooling conditions, and up to 120W with forced air.
Featuring a universal input voltage range of 85-264 VAC, these converters are suitable for global use. They boast high efficiency, reaching up to 93% for the 58V output, which minimizes power loss and aids in thermal management. The operating temperature range is -40°C to 70°C with derating, and an 85°C option is available upon request.
Designed with a compact 3 x 2 x 1 inch footprint, the ABC120-1T58L is ideal for integration into space-constrained systems. It includes features such as adjustable output, DC input capability, Power Factor Correction (PFC), and a standby output. The unit is certified to IEC/EN/UL 62368-1 and CCC standards, and is RoHS compliant.
Applications for the ABC120 Series include telecom, datacom, industrial equipment, instrumentation, lighting, applied computing, renewable energy, test and measurement, robotics, and wireless communication.
The nominal output voltage is 58V.
100W with convection cooling, 120W with forced air (300 LFM).
Universal input: 85-264 VAC (also 390 VDC).
-40°C to 70°C with derating (85°C available on request).
93% typical at 48V/58V outputs.
76.2mm x 50.8mm x 30.1mm.
Yes, active PFC with power factor >0.95.
