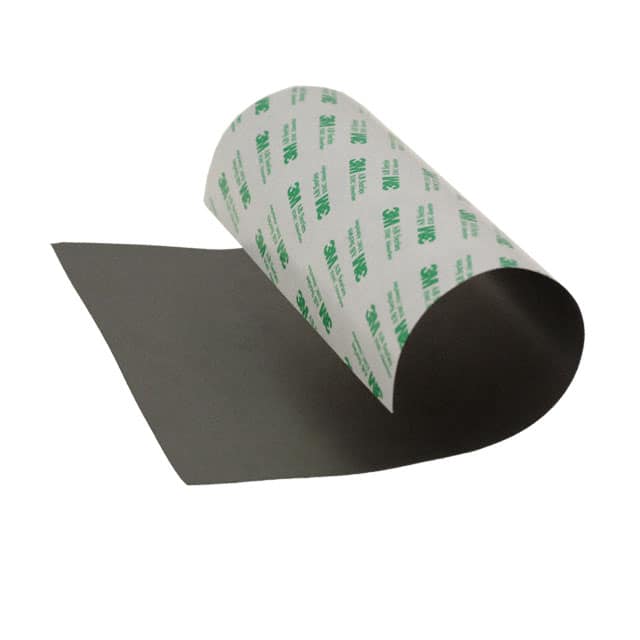

The 3M AB7000HF Series EMI Absorber, specifically the AB7030HF model, is a flexible, high-permeability magnetic sheet designed for EMI control and signal integrity improvement. It is constructed from a polymer resin loaded with soft metal flakes and features a one-sided acrylic pressure-sensitive adhesive for easy application.
This absorber is suitable for near-field applications within the 50MHz to 10 GHz range. Its typical applications include reducing noise and crosstalk in mobile electronics, flex cables, and around integrated circuits. It can also be used for damping radiation within shields and cavities, thereby increasing signal integrity on high-speed data lines.
The AB7030HF has a thickness of 0.35mm and operates within a temperature range of -25°C to 85°C. The material is RoHS 3 compliant and meets IEC 61249-2-21 guidelines for low halogen content. It is supplied in a standard sheet size of 210mm x 297mm and is easily die-cut into complex shapes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 85°C.
The thickness of the AB7030HF absorber sheet is 0.35mm.
It uses a non-conductive, single-sided acrylic pressure-sensitive adhesive.
Yes, the AB7030HF is RoHS 3 compliant.
The standard packaging size is 210mm x 297mm.
