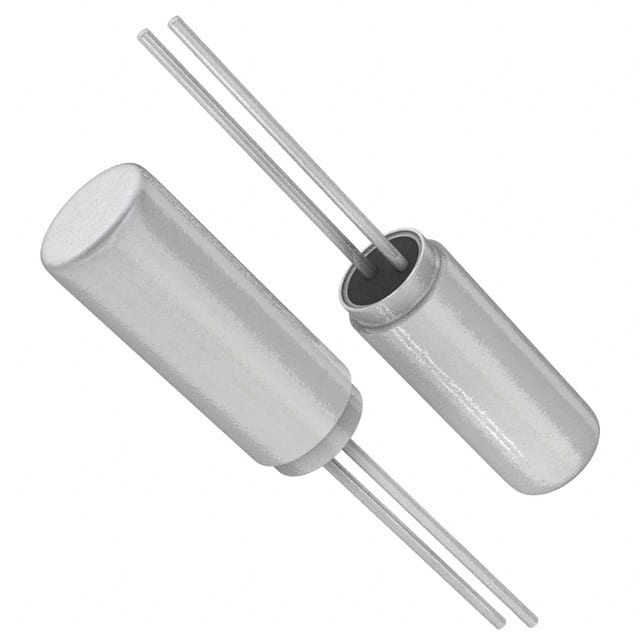

The Abracon LLC AB38T-32.768KHZ is a low-frequency cylindrical watch crystal operating at 32.768 kHz. This tuning fork crystal provides a nominal frequency tolerance of ±20 ppm at +25°C and is designed for a load capacitance of 12.5 pF. The crystal operates in fundamental mode and delivers a typical quality factor of 90,000.
Key electrical specifications include a maximum equivalent series resistance (ESR) of 30 kΩ, a typical shunt capacitance of 1.60 pF, and a motional capacitance of 0.0035 pF. The drive level is rated at 1 µW maximum. The device is housed in a cylindrical radial can package with dimensions of 3.20 mm diameter by 8.30 mm length. It is RoHS compliant.
This crystal is suitable for real-time clock circuits, clock sources for communication and A/V equipment, and measuring instruments. The operating temperature range is -10°C to +60°C, with a storage range of -40°C to +85°C. Standard packaging is 1,000 pieces per bag.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
| 10+ | $0.45 | $0.45 |
| 25+ | $0.43 | $0.43 |
| 50+ | $0.41 | $0.41 |
| 100+ | $0.39 | $0.39 |
| 250+ | $0.37 | $0.37 |
| 500+ | $0.35 | $0.35 |
| 1,000+ | $0.34 | $0.34 |
| 3,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency tolerance is ±20 ppm at +25°C.
The load capacitance is 12.5 pF.
The operating temperature range is -10°C to +60°C.
Yes, it is RoHS compliant per the datasheet.
It is a through-hole cylindrical radial can package measuring 0.126" diameter x 0.330" length (3.20 mm x 8.30 mm).
The maximum equivalent series resistance is 30 kΩ.
