| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46,000 pcs
|
46000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Type | |
| Width |

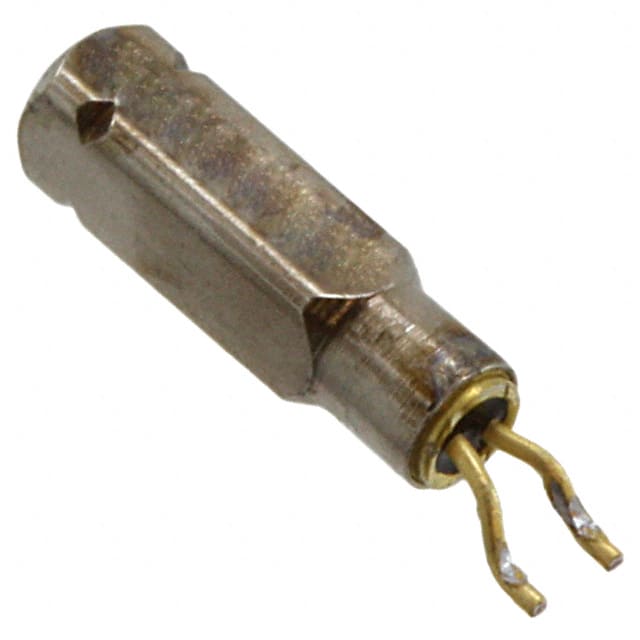

The Abracon AB26TRQ-32.768KHZ-T is a low frequency reflowable tuning fork crystal designed for precision timing applications. It operates at a nominal frequency of 32.768 kHz with a frequency tolerance of ±20ppm and a maximum equivalent series resistance (ESR) of 50 kΩ.
This crystal is housed in a surface-mount package measuring 5.2mm x 1.45mm x 1.45mm, making it suitable for space-constrained designs. It operates in fundamental mode and is specified for an operating temperature range of -40°C to +85°C. The part is available in tape and reel packaging.
The AB26TRQ series is RoHS/RoHS II compliant with applicable exemptions and has a Moisture Sensitivity Level (MSL) of 1 (unlimited). Typical applications include real-time clocks, timers, and low-frequency oscillators in consumer electronics, industrial controls, and IoT devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
| 10+ | $0.86 | $0.86 |
| 25+ | $0.81 | $0.81 |
| 50+ | $0.78 | $0.78 |
| 100+ | $0.74 | $0.74 |
| 250+ | $0.70 | $0.70 |
| 500+ | $0.67 | $0.67 |
| 1,000+ | $0.65 | $0.65 |
| 2,000+ | $0.62 | $0.62 |
| 4,000+ | $0.59 | $0.59 |
| 6,000+ | $0.58 | $0.58 |
| 10,000+ | $0.56 | $0.56 |
| 14,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency tolerance is ±20ppm.
The load capacitance is specified as 12.5pF; however, the datasheet suggests 9pF — verify with the manufacturer.
The package is SMD measuring 5.2mm x 1.45mm x 1.45mm.
The operating temperature range is from -40°C to +85°C.
Yes, it is RoHS/RoHS II compliant with exemptions 7(a) and 6(c) per RoHS II 2011/65/EU.
