| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
470 pcs
|
470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Approval Agency | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Range | |
| Frequency Tolerance | |
| Height | |
| Insulation Resistance | |
| Load Capacitance | |
| Military Grade | |
| Motional Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Quality Factor | |
| Shunt Capacitance | |
| Size / Dimension | |
| Storage Temperature | |
| Temperature Coefficient | |
| Turn-Over Temperature | |
| Type |

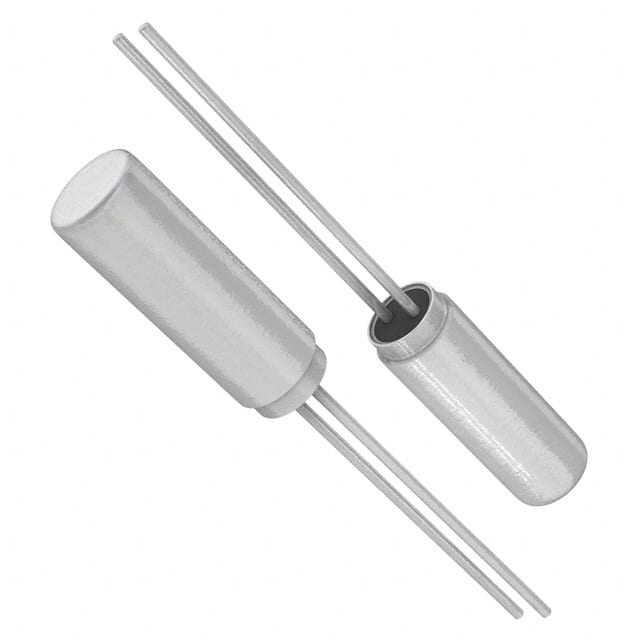

The Abracon AB26T-32.768KHZ is a 32.768 kHz tuning fork crystal designed for real-time clock and timing applications. It offers a frequency tolerance of ±20 ppm and a load capacitance of 12.5 pF.
Electrical characteristics include a maximum ESR of 35 kΩ, a typical quality factor of 70,000, and a drive level of 1.0 µW. The crystal operates over a temperature range of -10°C to +60°C with a turn-over temperature of +25°C ±5°C.
The crystal is housed in a cylindrical through-hole package measuring 2.10mm x 6.20mm. It is RoHS3 compliant and has an MSL of 1 (unlimited). The part is suitable for use in watches, measuring instruments, and communication equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 10+ | $0.25 | $0.25 |
| 25+ | $0.24 | $0.24 |
| 50+ | $0.23 | $0.23 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.21 | $0.21 |
| 500+ | $0.20 | $0.20 |
| 1,000+ | $0.19 | $0.19 |
| 3,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-10°C to +60°C
Cylindrical Can, Radial, through-hole mounting
Yes, it is RoHS3 compliant (unverified).
±20 ppm maximum
12.5 pF nominal
35 kΩ maximum
±3 ppm maximum in the first year at +25°C
