| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
375 pcs
|
375 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
286 pcs
|
286 pcs | On Request | 1 | On Request | On Request | 1413+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Function | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Sensing Method | |
| Supplier Device Package | |
| Voltage |
The Skyworks Solutions AAT4712IRN-T1 is a current limiting integrated circuit designed for power management applications. It features high-side current sensing and can limit current up to 2.5A. The device operates over a supply voltage range of 2.5V to 5.5V and is specified for ambient temperatures from -40°C to 85°C, making it suitable for industrial and automotive environments.

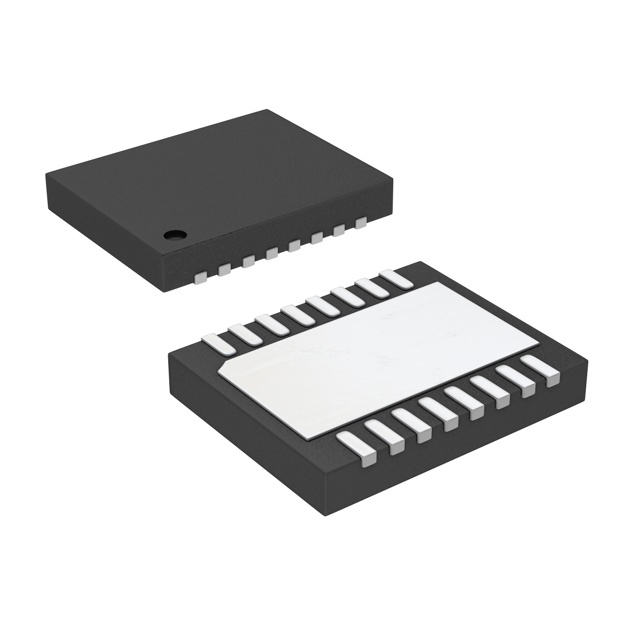

The AAT4712IRN-T1 is offered in a compact 16-TDFN (3x4) package with an exposed pad for enhanced thermal performance. The surface mount package supports automated assembly and is compatible with standard reflow soldering processes. The high-side sensing architecture allows precise current monitoring without disturbing the ground path.
Typical applications include USB port power control, battery charging circuits, and general purpose current regulation in portable devices. The device requires no external sense resistor for current limiting, reducing board space and component count. The IC integrates the current sensing and limiting functions into a single monolithic solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The operating voltage range is 2.5V to 5.5V.
The device is specified with a 16-TDFN (3x4) supplier device package and also a 16-WFDFN Exposed Pad package.
The function is current limiting.
The sensing method is high-side.
The current rating is 2.5A.
The mounting type is surface mount.
