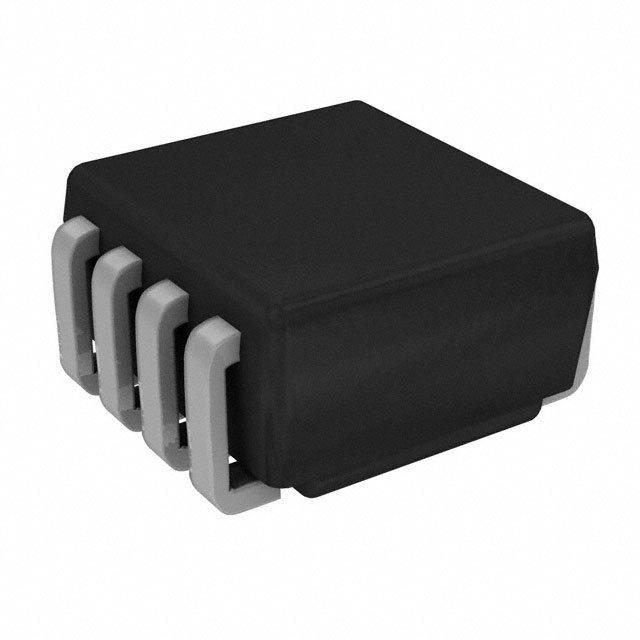

AAT4292IJQ-T1 The AAT4292IJQ-T1 is a seven-channel high side I/O expander from Skyworks Solutions. It operates over a 1.8V to 5.5V input voltage range and features low quiescent current.
Mfr Part #:

AAT4292IJQ-T1

Available from 1 distributors
Mfr Name: Skyworks Solutions
Skyworks Solutions
The AAT4292IJQ-T1 is a seven-channel high side I/O expander from Skyworks Solutions. It operates over a 1.8V to 5.5V input voltage range and features low quiescent current.
✓ Total Stock: 2,419 pcs

AAT4292IJQ-T1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
2,419 pcs
On Request
2419 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AAT4292IJQ-T1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Operating Temperature Range
View Similar Products (0)

AAT4292IJQ-T1 Description

Short technical summary and product information.

The AAT4292IJQ-T1 is a SmartSwitch™ seven-channel high side I/O expander from Skyworks Solutions. It is part of the Application Specific Power MOSFET (ASPM™) product family, featuring seven P-channel MOSFETs. The device is designed for use as a microprocessor GPIO expander, powered from a common supply source.



Operating within a 1.8V to 5.5V input voltage range, the AAT4292IJQ-T1 is well-suited for portable Li-Ion/Polymer powered products. Each output channel's state is controlled via a single GPIO line using Skyworks' Simple Serial Control (AS2Cwire™) interface. It boasts a low operational quiescent current of 6.3µA, reducing to 0.1µA in shutdown mode. The component is offered in a Pb-free, 10-pin SC70JW package and is specified for operation across a -40°C to +85°C temperature range.

AAT4292IJQ-T1 Quick Information

Product Type: I/O Expander
Canonical Name: AAT4292 Seven-Channel High Side I/O Expander
Subcategory: High Side I/O Expander

AAT4292IJQ-T1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AAT4292IJQ-T1 Features

  • Operates from a 1.8V to 5.5V input voltage.
  • Features seven independent output channels.
  • Each channel has a low 1.1 Ω RDS(ON).
  • Utilizes Skyworks' AS2Cwire™ serial interface.
  • Maintains low quiescent current of 6.3µA.

AAT4292IJQ-T1 Applications

  • Ideal for cell phone keypad control.
  • Suitable for backlight and fashion lighting.
  • Functions as a general I/O expander.
  • Used in media players and portable devices.
  • Supports multiple channel low power switching.

AAT4292IJQ-T1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the AAT4292IJQ-T1?

The AAT4292IJQ-T1 operates with an input voltage range of 1.8V to 5.5V.

How many output channels does the AAT4292IJQ-T1 have?

The AAT4292IJQ-T1 features seven independent output channels.

What is the RDS(ON) per channel for this I/O expander?

The RDS(ON) per channel for the AAT4292IJQ-T1 is 1.1 Ω.

What is the quiescent current of the AAT4292IJQ-T1 during operation?

The operational quiescent current for the AAT4292IJQ-T1 is typically 6.3µA.

What is the quiescent current of the AAT4292IJQ-T1 in shutdown mode?

In shutdown mode, the quiescent current of the AAT4292IJQ-T1 is reduced to 0.1µA.

What is the operating temperature range for the AAT4292IJQ-T1?

The AAT4292IJQ-T1 is specified to operate over a temperature range of -40°C to +85°C.

What is the package type for the AAT4292IJQ-T1?

The AAT4292IJQ-T1 is available in an SC70JW-10 package.
