| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58,500 pcs
|
58500 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request | |
|
3,823 pcs
|
3823 pcs | On Request | 1 | On Request | On Request | 180122 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Quiescent Current | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |

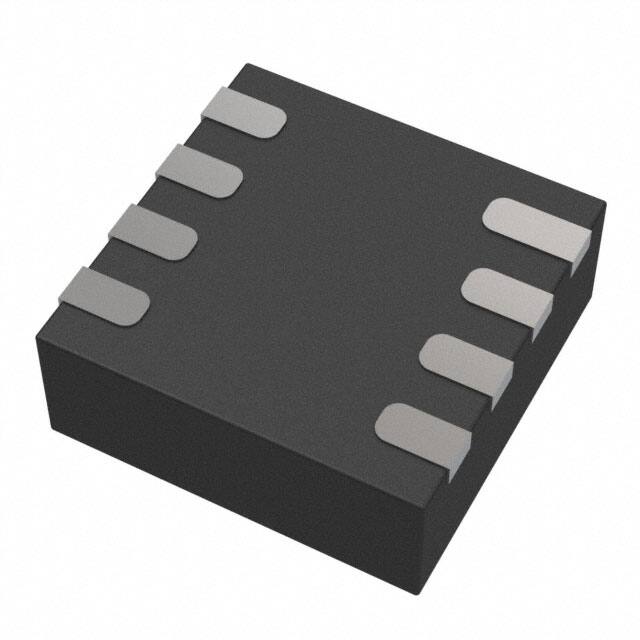

The AAT4282AIPS-3-T1 from Skyworks Solutions is a dual P-channel MOSFET power switch belonging to the SmartSwitch™ family. It is designed for high-side load-switching applications, offering a typical Rds(On) of 56mΩ at 5V, which allows for high current handling with a low forward voltage drop. The device operates from a 1.5V to 6.5V input voltage range, making it suitable for 3V and 5V systems. Input logic levels are compatible with TTL and 2.5V to 5V CMOS.
This load switch is available in different versions with flexible turn-on and turn-off characteristics, including slew-rate limited and fast turn-on options. It also features a low quiescent supply current of typically 1μA. The AAT4282AIPS-3-T1 is available in an 8-FTDFN (2x2mm) package and an 8-WFDFN package, suitable for surface mounting. The operating temperature range is -40°C to 85°C.
Key features include a 1:1 output ratio, 2 outputs, and an On/Off interface. It is classified as a general-purpose switch type. The device is specified over a -40°C to 85°C temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 1.5V to 6.5V.
The typical on-resistance is 56mOhm at 5V and 140mOhm at 1.5V.
The operating temperature range is -40°C to 85°C.
It is available in an 8-FTDFN (2x2) package and an 8-WFDFN package.
Key features include load discharge, slew rate control, a 1:1 ratio, and 2 outputs.
