| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Chemistry | |
| Battery Pack Voltage | |
| Charge Current | |
| Current | |
| Fault Protection | |
| Interface | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Voltage |
The AAT3783AIRN-4.2-T1 from Skyworks Solutions is an integrated circuit designed for charging single-cell lithium-ion or polymer batteries. This device offers a charge current of 1A and supports a battery pack voltage of 4.2V.
Key electrical specifications include a programmable current feature and a 7.5V input voltage. The IC provides comprehensive fault protection, including over current, over temperature, over voltage, and short circuit protection. It interfaces via USB.

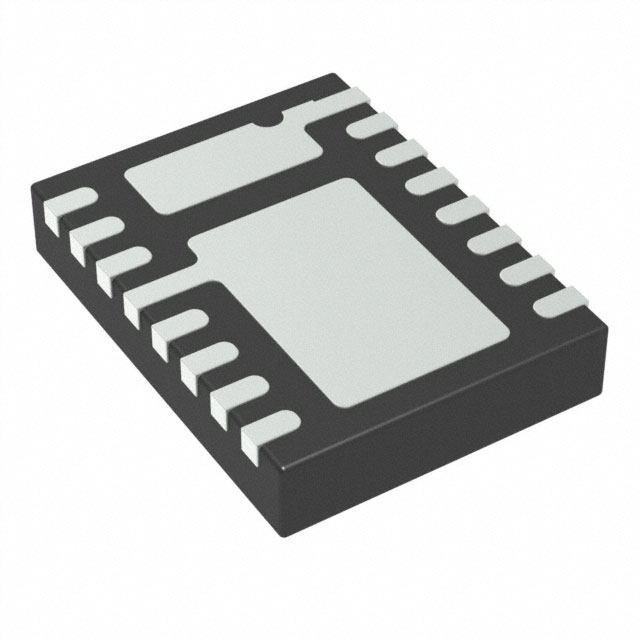

The AAT3783AIRN-4.2-T1 is housed in a 16-TDFN (3x4) package, specifically a 16-PowerWFDFN, and is designed for surface mount applications. The operating temperature range is -40°C to 85°C (TA).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 7.5V.
It comes in a 16-PowerWFDFN package, with a supplier device package of 16-TDFN (3x4).
It operates from -40°C to 85°C.
It supports a programmable constant charge current of 1A.
It is compatible with Lithium Ion and Lithium Polymer batteries.
It charges a single cell (1 cell).
Overcurrent, overtemperature, overvoltage, and short-circuit protection.
