| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,428 pcs
|
1428 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Dimming | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Topology | |
| Type |

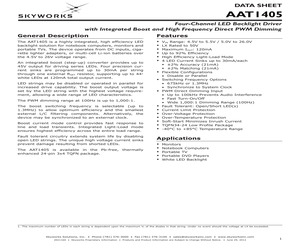

The Skyworks Solutions AAT1405IMK-T1 is an integrated circuit designed as an LED display driver. It operates as a DC DC regulator with a step-up (boost) topology, suitable for backlight applications.
Key electrical specifications include a supply voltage range of 5V to 26V, with a maximum output current per channel of 30mA. The device features 4 outputs and supports PWM dimming. It incorporates an internal switch and is housed in a 24-TQFN exposed pad package.
This component is designed for surface mounting and operates within a temperature range of -40°C to 85°C (TA). Its family is PMIC - LED Drivers, indicating its specialized function within power management integrated circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C (TA)
24-TQFN Exposed Pad
5V to 26V
4
30mA
