| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,554 pcs
|
1554 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Voltage | |
| Supplier Device Package |
The AAT1277IUT-T1 from Skyworks Solutions is a versatile step-up current regulator ideal for LED photo flash and torch applications in single-cell Li-ion powered products like cellphones and smartphones. This device features a high switching frequency of 2MHz, enabling the use of small inductors and capacitors, making it suitable for compact battery-powered devices.
It provides up to 1.5A of regulated output current, split between two channels (750mA per channel), and achieves up to 85% efficiency with a small 1μH inductor. The AAT1277IUT-T1 supports independent control for flash and movie modes, user-programmable safety timers, and includes protection features such as over-voltage, short-circuit, and over-temperature protection. The device operates within a 2.7V to 5.5V input voltage range and has a shutdown current of less than 1.0 μA.

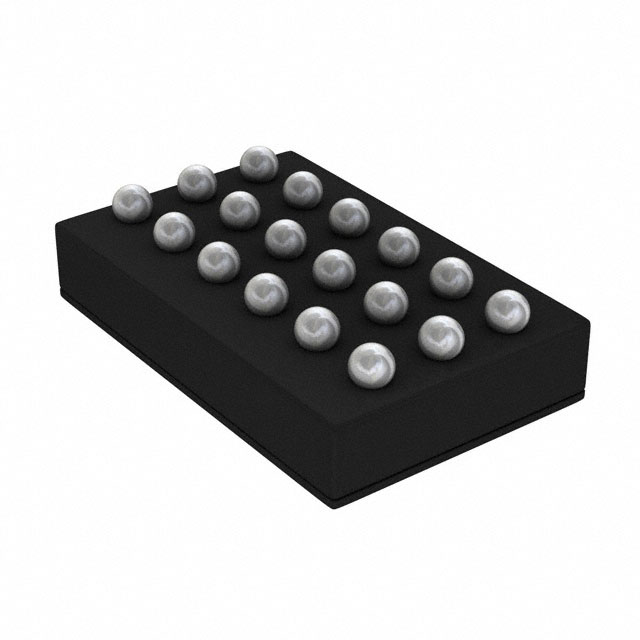

Packaged in an 18-ball 1.5mm x 2.4mm CSP, this surface-mount component is designed for efficient integration into space-constrained designs. Its dual-channel output capability allows for driving one or two LEDs, matching current between diodes if two are used.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7V to 5.5V.
18-CSP (1.5x2.4).
-40°C to +85°C.
Up to 1.5A total (750mA per channel).
2MHz.
Up to 85% with a 1µH inductor.
Less than 1µA.
