| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Embedded | |
| Interface | |
| Sensor Type | |
| Supplied Contents | |
| Utilized IC | |
| Voltage |

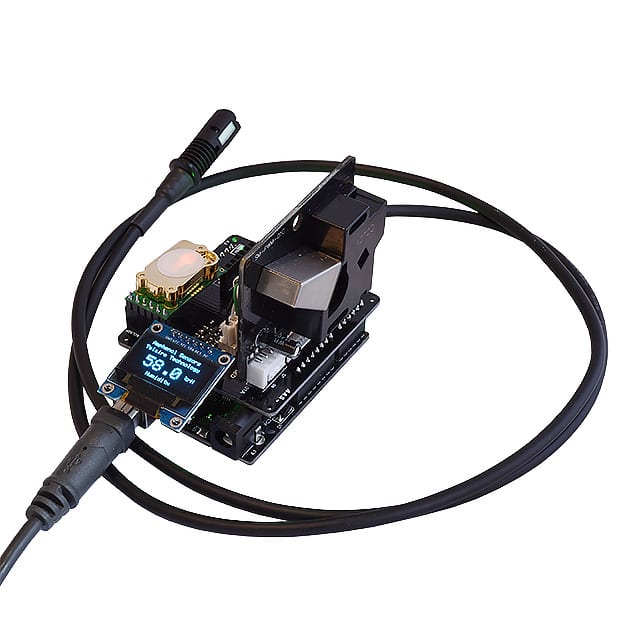

The AAS-AQS-UNO-RH-CO2 is an Arduino-compatible evaluation board designed for rapid prototyping of air quality monitoring systems. It integrates Telaire sensors: T6713 CO2 sensor, T9602 humidity/temperature sensor, and SM-PWM-01C dust sensor, along with an OLED display. The board includes preloaded software and sample code available on GitHub.
Electrical specifications include a 5V DC supply voltage at 1A current. Operating temperature range is 0°C to 60°C, and humidity range is 0% to 95% RH. Interface options are I²C, UART, and PWM, with output logic levels compatible with 3.3V systems (L<0.8V, H>2.7V).
Mechanically, the board measures 72mm x 56mm. The kit includes the evaluation board, USB cable, OLED screen, dust sensor, and humidity/temperature sensor.
Compliance: RoHS3 compliant, REACH unaffected, MSL 1 unlimited. Note that compliance data is low confidence and should be verified with official documentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $123.88 | $123.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V DC.
0°C to 60°C.
Yes, RoHS3 compliant.
CO2 (T6713), humidity/temperature (T9602), dust (SM-PWM-01C).
I²C, UART, PWM.
72mm x 56mm.
1A.
