| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

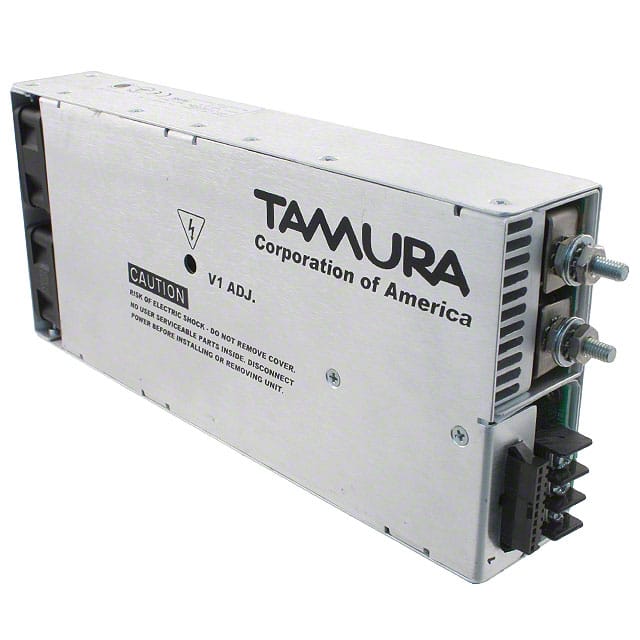

The Tamura AAD600S-6 is an open frame AC/DC converter designed for ITE (Commercial) applications. It features a robust chassis mount and accepts a wide input voltage range of 85 to 264 VAC, delivering a power output of 600W with a maximum current of 23A.
Key features include adjustable output, load sharing capabilities, Power Factor Correction (PFC), and remote on/off and sense functions. The converter operates within a temperature range of 0°C to 70°C, with derating applied at higher temperatures. Its dimensions are 228.6mm in length, 101.6mm in width, and 40.4mm in height.
This converter is suitable for various commercial applications requiring a reliable power supply. Its design considerations include efficiency up to 92% and compliance with CE standards.
85 ~ 264 VAC
23 A
600 W
92%
0°C ~ 70°C (with derating)
Chassis Mount
228.6mm x 101.6mm x 40.4mm
