Mfr Part #:

AAD160-3264

Mfr Name: Tamura

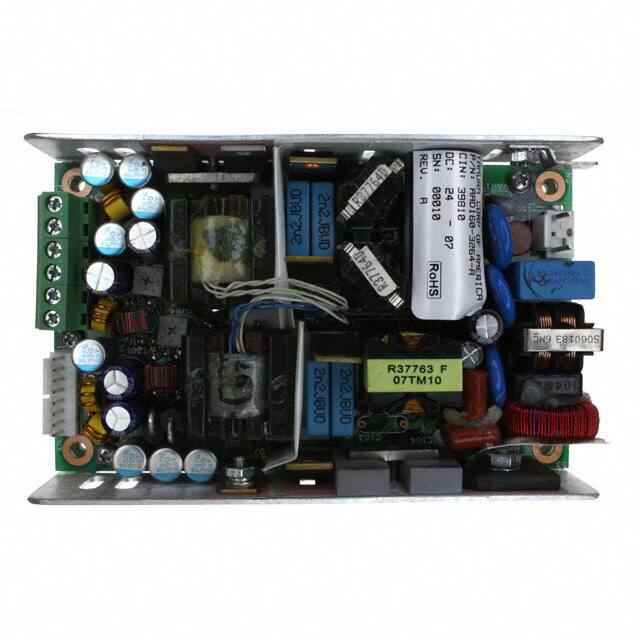

The Tamura AAD160-3264 is an open frame AC/DC converter with 4 outputs, delivering up to 80W of power. It features chassis mounting and universal input.

Stock on Request

AAD160-3264 Description

Short technical summary and product information.

This Tamura AAD160-3264 is an open frame AC/DC converter designed for ITE (Commercial) applications. It offers four output voltages, including -12V, and provides a total power output of 80W, with a higher capacity of 130W under forced air cooling.

The converter features a chassis mount type and dimensions of 127.0mm x 79.8mm x 31.8mm. Key features include Power Factor Correction (PFC), Remote Sense, and Universal Input, contributing to its 88% efficiency.

Environmental compliance includes RoHS3 compliance and an MSL of 1 Unlimited. The operating temperature range is from 0°C to 50°C.

AAD160-3264 Quick Information

Product Type: AC DC Converter

Canonical Name: Tamura AAD160-3264 AC/DC Converter

Subcategory: AC DC Converters

AAD160-3264 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AAD160-3264 Features

Open frame AC/DC converter with 4 outputs.
Delivers 80W power, 130W forced air.
Chassis mount for easy integration.
Features PFC, Remote Sense, Universal Input.
Operates from 0°C to 50°C.

AAD160-3264 Applications

Suitable for ITE (Commercial) applications.
Designed for external/internal power supply needs.
Provides multiple voltage outputs.

AAD160-3264 FAQs

8 frequently asked questions generated from this part’s specifications.

What is the operating temperature range?

0°C to 50°C.

How many outputs does the AAD160-3264 have?

4 outputs.

What is the efficiency of this converter?

88%.

What are the output voltages?

5V, 3.3V, 24V, and -12V.

What is the power rating?

80W continuous, 130W with forced air.

What approvals does it have?

CE approved.

What features are included?

PFC, remote sense, universal input.

What is the mounting type?

Chassis mount.
