| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

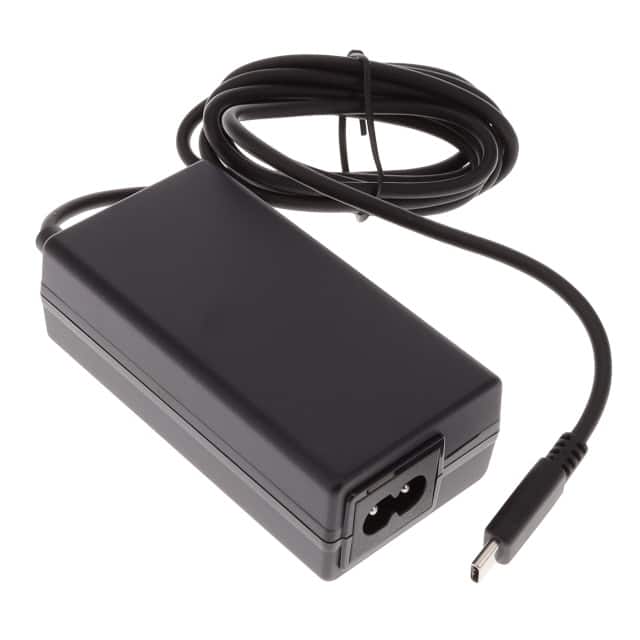

The Phihong USA AA65W-59FKA-R is a versatile 65W AC/DC desktop adapter designed for various applications including mobile phones, tablets, networking devices, monitors, and notebooks. It features Power Delivery 3.0 and a USB-C output connector, providing flexible power solutions.
This adapter operates within a wide AC input voltage range of 90 to 264VAC and offers multiple DC output voltages from 5.0V to 20.0V, with maximum currents up to 3.25A. It boasts high efficiency, meeting US DoE Level VI and EU CoC Tier 2 compliance standards. The adapter includes comprehensive protection features such as Over-Voltage Protection (OVP), Over-Current Protection (OCP), Over-Temperature Protection (OTP), and Short Circuit Protection (SCP).
Designed for reliability and safety, the AA65W-59FKA-R operates within a temperature range of 0°C to 40°C. Its compact dimensions (91.0mm x 48.0mm x 29.5mm) and desktop form factor make it suitable for various setups. The input connector is IEC 60320 C6, and it comes with a 1.50m cord.
The adapter provides 5.0V, 9.0V, 15.0V, and 20.0V output voltages.
The maximum output current is 3.0A for 5V, 9V, and 15V, and 3.25A for 20V.
The operating temperature range is 0°C to +40°C.
The adapter meets US DoE Level VI and EU CoC Ver 5 Tier 2 efficiency standards.
The adapter uses a USB Type C output connector.
The input voltage range is 90-264VAC.
The adapter includes over-voltage, over-current, and short-circuit protection, all with auto-recovery.
