| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

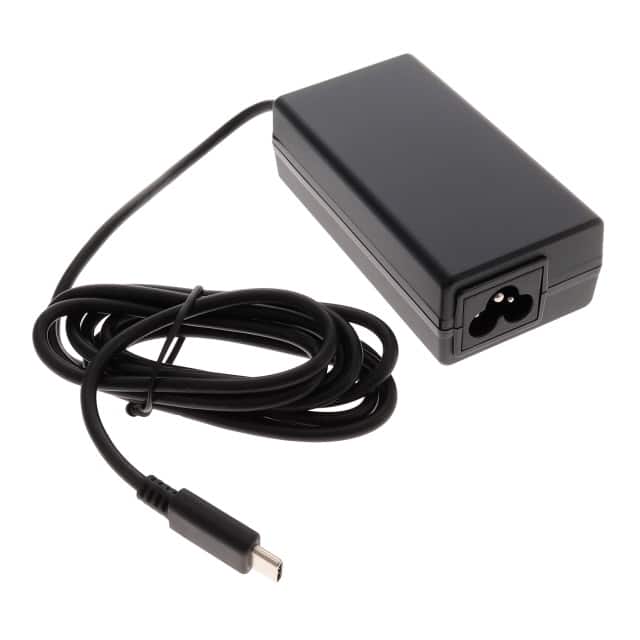

The Phihong USA AA65M-59FKA-R is a 65W AC/DC desktop adapter designed for various ITE commercial applications. It offers flexible output voltages of 5.0V, 9.0V, 15.0V, and 20.0V, with corresponding maximum currents of 3.0A, 3.0A, 3.0A, and 3.25A.
This adapter complies with Power Delivery 3.0 and features a USB-C output connector. It meets US DoE Level VI efficiency standards and EU Ecodesign/ErP Lot 7 (EU) 2019/1782 requirements, along with EU CoC Ver 5 Tier 2 compliance. Built-in protections include Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short Circuit protection.
With an input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz, the adapter operates efficiently across international power grids. It has a compact desktop form factor (Class I) with dimensions of 91.0mm x 48.0mm x 29.5mm and weighs 6.4oz. The input connector is IEC 60320 C6, and the included cord length is 1.50 meters.
The adapter supports output voltages of 5.0V, 9.0V, 15.0V, and 20.0V.
The maximum output current varies by voltage: 3.0A for 5V, 9V, and 15V, and 3.25A for 20V.
It meets US DoE Level VI efficiency compliance, Ecodesign/ErP Lot 7 (EU) 2019/1782, and EU CoC Ver 5 Tier 2.
The adapter includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), Over-Temperature Protection (OTP), and Short Circuit Protection.
The operating temperature range is from 0°C to +40°C.
It uses a USB Type C output connector.
The input connector is an IEC 60320 C6.
