| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,515 pcs
|
1515 pcs | On Request | 1 | On Request | On Request | 1638+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Color | |
| Configuration | |
| Current | |
| Halogen Free | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Lens Type | |
| Material | |
| Millicandela Rating | |
| Mounting Type | |
| Reverse Current | |
| Spectral Bandwidth | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

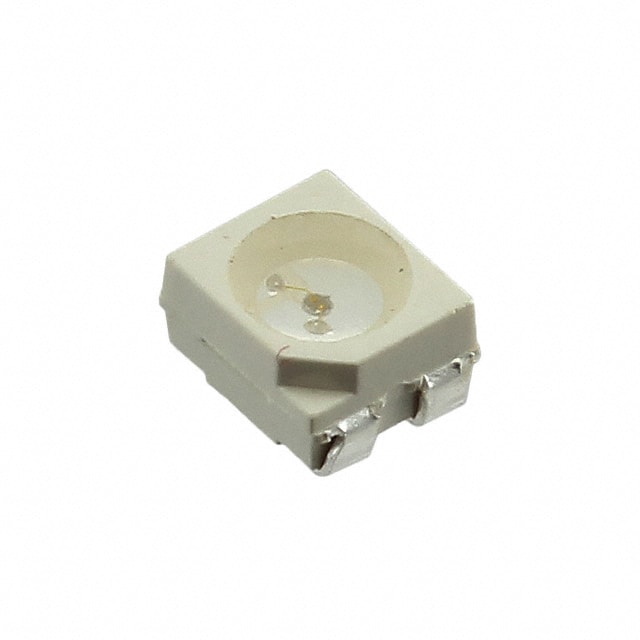

This Kingbright AA3527AVBS/D-30MAV is a blue, single-color LED designed for surface mount applications. It features a water clear lens and a 3.5 x 2.7 mm package.
The LED emits blue light with a peak wavelength of 465nm and a dominant wavelength of 470nm. It offers a typical luminous intensity of 600mcd at 30mA and a wide viewing angle of 120 degrees. The typical forward voltage is 3.5V, with a maximum of 4.5V, and the reverse current at 5V is a maximum of 50µA.
Suitable for SMD assembly and solder processes, this LED is available on tape and reel, with 2000 pieces per reel. Its compact size and clear lens make it ideal for backlighting, status indicators, and other general lighting applications.
Compliance includes RoHS3, and it has a Moisture Sensitivity Level (MSL) of 1. The device is made with InGaN material and requires precautions for handling electrostatic discharge sensitive devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical luminous intensity is 600mcd at 30mA.
The viewing angle is 120 degrees.
The typical forward voltage is 3.5V, with a maximum of 4.5V.
The peak emission wavelength is 465nm.
It is packaged in a 4-SMD, J-Lead configuration and is available on tape and reel with 2000 pieces per reel.
Yes, this LED is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
