| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

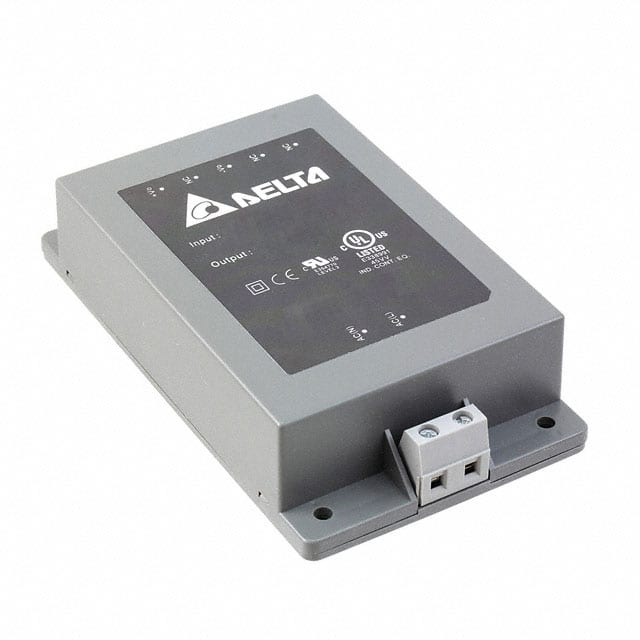

The Delta Electronics AA30S1200C is a 30W encapsulated AC-DC power supply module designed for commercial and industrial applications. It provides a single 12V output at 2.5A, with a typical efficiency of 80%.
This module features a universal input voltage range of 85-264 VAC and operates at frequencies from 47-440 Hz. It offers 3kVAC isolation and includes over-load and over-voltage protection. The compact design measures 112.0mm x 63.8mm x 25.6mm.
Designed for reliability under stressful conditions, the AA30S1200C is suitable for various electronic equipment. It is certified to UL/IEC/EN 60950-1 and CE marked, with selective UL508 approval. The unit is RoHS compliant and comes with a 3-year product warranty.
The output voltage is 12 VDC.
The maximum output current is 2.5 A.
The power rating is 30W.
The typical efficiency is 80%.
The input voltage range is 85-264 VAC.
The operating temperature range is -25°C to 70°C.
It is designed for chassis mounting.
