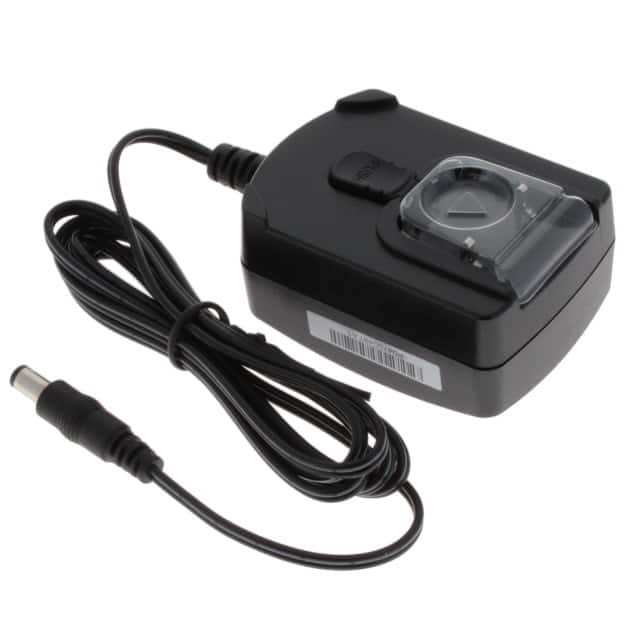

AA20R-480A-R The AA20R-480A-R is a 48V 20W AC/DC wall mount adapter from Phihong USA. It delivers 0.42A output current with ±5% regulation and features Class II double insulation.
Mfr Part #:

AA20R-480A-R

Mfr Name: Phihong USA
Phihong USA
The AA20R-480A-R is a 48V 20W AC/DC wall mount adapter from Phihong USA. It delivers 0.42A output current with ±5% regulation and features Class II double insulation.
Stock on Request

AA20R-480A-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Approval Agency
Automotive Grade
Cable Length
Cord Length
Current
Dimensions
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Insulation Resistance
Length
Medical Grade
Military Grade
Mounting Type
No Load Power Consumption
Operating Temperature
Output Connector
Output Power
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Weight
Width
View Similar Products (0)

AA20R-480A-R Description

Short technical summary and product information.

The Phihong USA AA20R-480A-R is a 48V, 20W AC/DC wall mount adapter designed for a wide range of electronic devices. It accepts a universal AC input from 90 to 264VAC at 47-63Hz, making it suitable for global use. The adapter provides a regulated 48V DC output at up to 0.42A with ±5% regulation and low ripple and noise of 480mV P-P maximum.



This adapter meets DoE Level VI efficiency standards and complies with Ecodesign/ErP Lot 7 (EU) 2019/1782 and CoC Version 5 Tier 2 requirements. It is certified to IEC 62368-1 safety standard and features Class II double insulation, eliminating the need for an earth ground connection. Protection features include over-voltage protection (<62Vpk), over-current protection with auto restart, and short circuit protection.



The wall mount form factor measures 72.5mm x 50.8mm x 33.25mm and weighs 146g. It comes with a 1.5m output cable terminated with a 2.1mm x 5.5mm x 10.0mm barrel plug with positive center polarity. Input blades are sold separately, allowing use with different regional plug types.

AA20R-480A-R Quick Information

Product Type: AC/DC Wall Mount Adapter
Series: AA20R
Canonical Name: Phihong USA AA20R-480A-R AC/DC Wall Mount Adapter 48V 20W
Subcategory: AC DC Desktop, Wall Adapters

AA20R-480A-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AA20R-480A-R Features

  • 48V DC output at 0.42A maximum current.
  • 20W nominal output power with ±5% regulation.
  • Universal AC input range 90-264VAC.
  • Class II double insulated wall mount design.
  • Compliant with DoE Level VI efficiency.

AA20R-480A-R Applications

  • Ideal for wireless communications equipment.
  • Suitable for portable electronic devices.
  • Used in peripheral power applications.
  • Designed for consumer electronics.

AA20R-480A-R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the AA20R-480A-R?

The adapter accepts a universal AC input from 90 to 264VAC at 47 to 63Hz.

What are the output voltage and current ratings?

The output is 48V DC at up to 0.42A, with a nominal power of 20W.

What is the operating temperature range?

The operating temperature range is 0°C to +40°C.

What efficiency level does this adapter meet?

It meets DoE Level VI efficiency and complies with Ecodesign/ErP Lot 7 and CoC Version 5 Tier 2.

What safety standard is the AA20R-480A-R certified to?

It is certified to IEC 62368-1 safety standard and is Class II double insulated.

What protection features are included?

Over-voltage protection (<62Vpk), over-current protection with auto restart, and short circuit protection.

What is the output connector type?

The output connector is a 2.1mm x 5.5mm x 10.0mm barrel plug with positive center polarity.
