| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Range | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

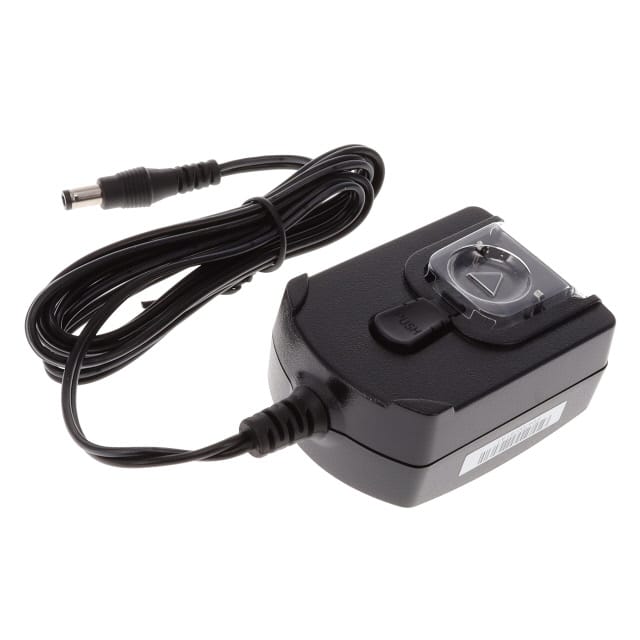

The Phihong USA AA20R-120A-R is a versatile AC/DC adapter designed for ITE (Commercial) applications. It delivers a stable 12VDC output at 1.67A, providing a total power of 20W. This adapter meets Level VI efficiency standards, ensuring optimal energy usage.
Featuring a convenient wall mount form factor, the AA20R-120A-R is easy to integrate into various setups. Its dimensions are 72.5mm x 50.8mm x 33.3mm (2.85" L x 2.00" W x 1.31" H). The adapter operates within a temperature range of 0°C to 40°C and utilizes a center-positive polarity with a 2.1mm I.D. x 5.5mm O.D. x 10.0mm barrel plug output.
Safety is paramount, with compliance to standards such as IEC/EN 62368-1 and UL62368-1. The input is a multi-blade connector, sold separately, supporting a wide input range of 90~264 VAC. This adapter is suitable for international use.
The adapter provides a fixed 12VDC output at 1.67A maximum current.
It accepts a universal AC input range from 90VAC to 264VAC.
The unit is rated for operation between 0°C and 40°C.
It terminates in a straight barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter.
Yes, it complies with IEC/EN 62368-1, UL 62368-1, cUL/UL 60950-1, and SAA standards.
The adapter achieves a typical efficiency of 86.5 percent, meeting Energy Level VI requirements.
