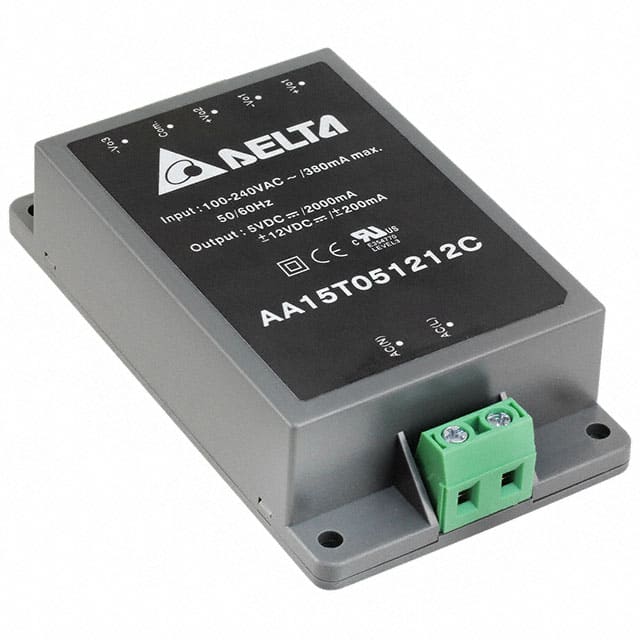

The Delta Electronics AA15T051212C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264 VAC and provides three outputs: 5V, +12V, and -12V. The primary output delivers up to 2A, while the secondary and tertiary outputs provide 200mA each, totaling 15W of power.
This converter boasts an efficiency of 79% and offers 3kV of isolation voltage. It is designed for chassis mounting and operates within a temperature range of -25°C to 70°C. The unit is RoHS3 compliant and has an MSL rating of 1.
Key features include DC input capability and universal input, making it versatile for various power supply needs. Its compact dimensions of 74.0mm x 54.0mm x 19.5mm facilitate integration into different systems.
The input voltage range is 85 to 264 VAC.
It provides three outputs: 5V at 2A, 12V at 200mA, and -12V at 200mA.
The power rating is 15 watts.
The input-to-output isolation voltage is 3 kV.
The operating temperature range is -25°C to 70°C.
The mounting type is chassis mount.
