| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

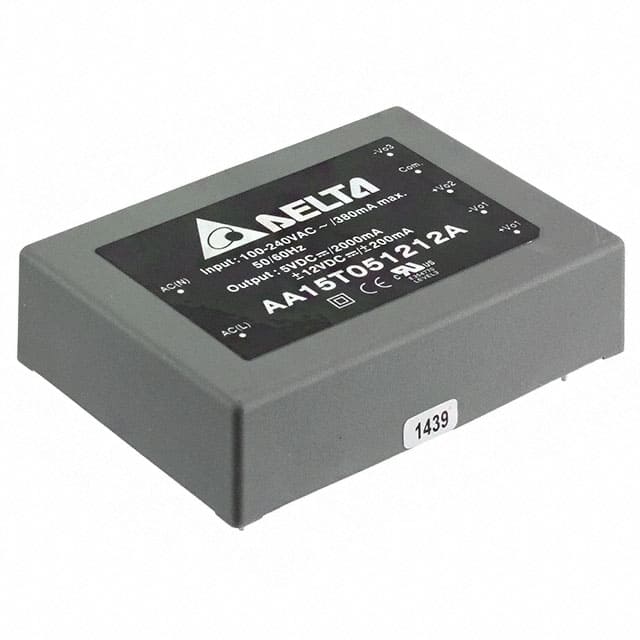

This Delta Electronics AA15T051212A is an enclosed AC/DC converter with a power rating of 15W. It provides outputs of 5V, -12V, and 200mA, with a primary output of 2A. The converter features universal input and is designed for Through Hole mounting.
Key specifications include an efficiency of 74% and an operating temperature range of -25°C to 70°C with derating. The dimensions are 74.0mm x 54.0mm x 19.5mm. It is approved by CE, cUL, and UL and complies with standard 60950-1.
This converter is suitable for ITE (Commercial) applications and features a 7-DIP Module package. It is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The Delta Electronics AA15T051212A has a power output of 15W.
The converter provides a 5V output, a -12V output, and a 200mA output, with a primary output of 2A.
The operating temperature range is -25°C to 70°C (With Derating).
The converter is designed for Through Hole mounting.
The package type is a 7-DIP Module.
