| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

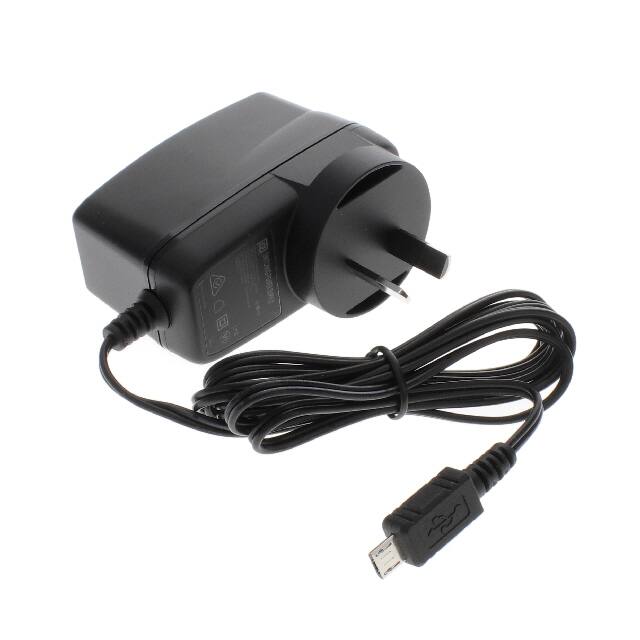

This Phihong USA AA10S-050A(M)-R is a 10W AC/DC wall mount adapter designed for ITE (Commercial) applications. It features a fixed blade AC input and provides a stable 5V DC output at a maximum current of 2A, delivering up to 10W of power.
The adapter operates within a wide AC input voltage range of 90 to 264VAC and meets Australian and New Zealand MEPS (Minimum Energy Performance Standards) compliance, including AS/NZS 62368.1:2018 and AS/NZS 3112:2017 standards. It boasts Level VI efficiency and Class B EMI emissions, making it suitable for various commercial environments.
Key electrical specifications include ±1% line regulation, 200mVp-p ripple and noise, and a low no-load power consumption of ≤0.075W. For safety, it includes over-voltage protection up to 9.0V and short circuit protection. The operating temperature range is 0°C to +40°C.
Mechanically, the adapter has dimensions of 71.2mm x 34.0mm x 55.0mm and weighs 75.1g. It features a 1.50m DC cable with a 2.1mm x 5.5mm barrel output connector. The unit is designed as a Class II wall mount adapter.
The adapter provides a 5V DC output at a maximum current of 2A, for a total output power of 10W.
The adapter accepts an AC input voltage range from 90 to 264VAC.
Yes, it complies with Australian and New Zealand MEPS (Minimum Energy Performance Standards) and safety standards AS/NZS 62368.1:2018 and AS/NZS 3112:2017.
The adapter can operate in temperatures ranging from 0°C to +40°C.
It features a 2.1mm x 5.5mm barrel output connector.
