| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

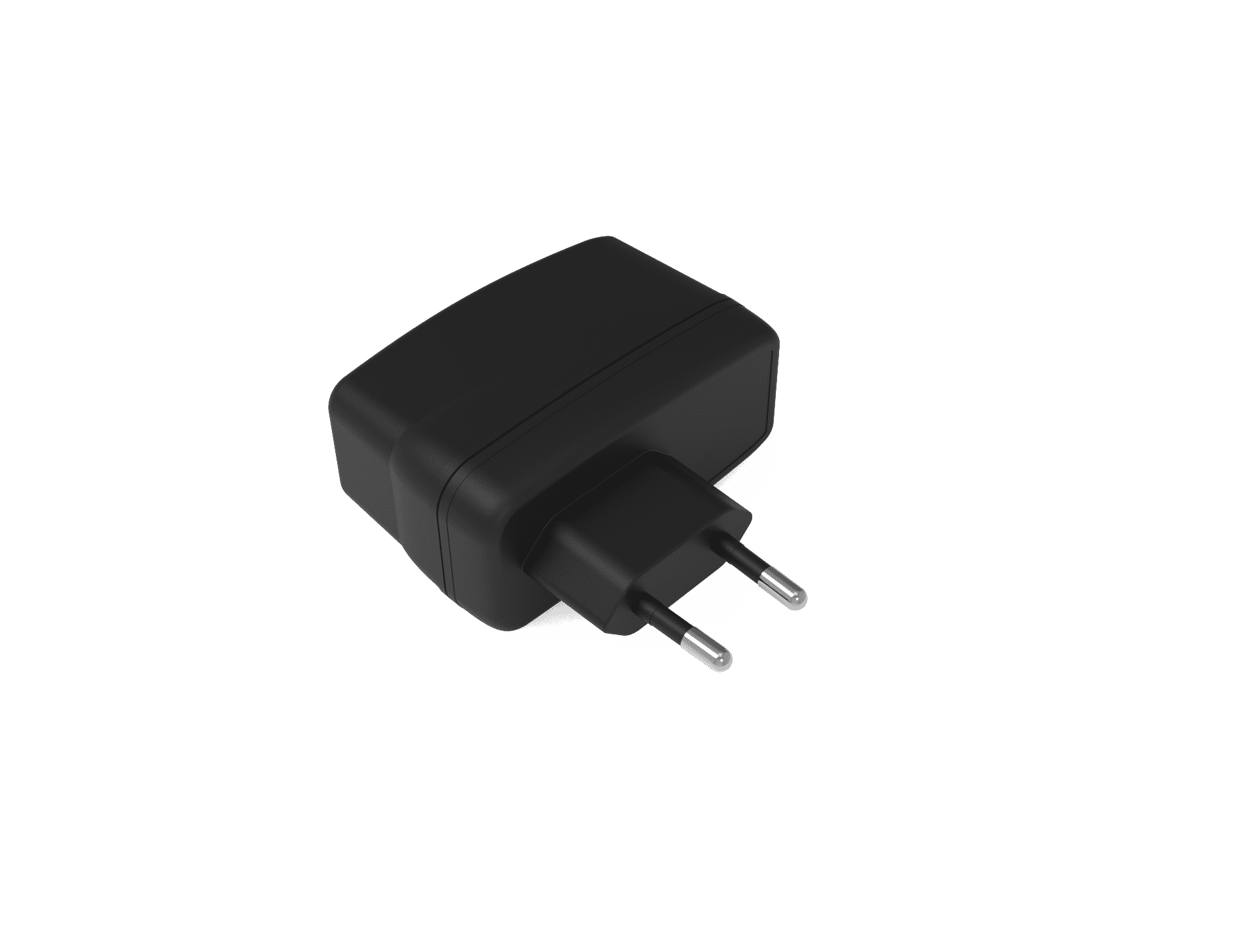

The Phihong USA AA10E-050A-R is a 10W AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 5V output with a maximum current of 2A, suitable for various electronic devices.
This adapter features a fixed blade AC input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. It operates within a temperature range of 0°C to 40°C and boasts a low no-load power consumption of 75mW maximum. The unit meets Level VI efficiency standards and complies with IEC safety standards.
Designed as a Class II, wall mountable unit, the AA10E-050A-R has dimensions of 71.2mm x 34.0mm x 64.7mm. It includes a 1.50m cord length for convenient placement. The adapter is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 5V and the output current is 2A.
It uses a fixed CEE 7/16 input blade.
The operating temperature range is 0°C to 40°C.
It meets Level VI efficiency standards.
It has a barrel plug with 2.1mm I.D. and 5.5mm O.D.
