| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

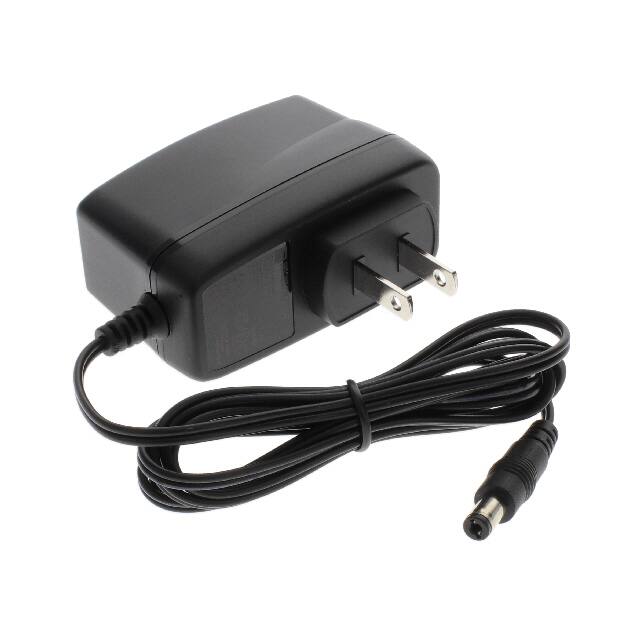

The Phihong USA AA10A-050A-R is a compact, fixed blade AC/DC wall mount adapter designed for various personal electronics and ITE applications. It delivers a stable 5V output at up to 2A, with a maximum power rating of 10W. This adapter is engineered for efficiency, meeting the Level VI energy efficiency standard, and features Class B EMI compliance for reduced interference.
Key electrical specifications include a wide AC input voltage range of 90-264VAC and protection features such as Over-voltage Protection (OVP), Short-circuit Protection (SCP), and Over-current Protection (OCP). The adapter operates within a temperature range of 0°C to 40°C and has a humidity tolerance of up to 85%.
Mechanically, the unit has dimensions of 71.2mm x 34mm x 52.5mm and weighs 72.7g. It features a NEMA 1-15P input connector and a standard 2.1mm x 5.5mm barrel plug output connector with positive center polarization. The integrated DC cord measures 59 inches (1.50m) in length. Safety approvals include UL 60950-1 and UL 62368-1.
This adapter is suitable for applications requiring reliable power delivery for devices such as MPEG players, personal electronics, and PDAs. It complies with FCC Part 15 Class B and EN55032 Class B standards for electromagnetic compatibility.
The adapter provides a 5V output at a maximum current of 2A.
The adapter has a maximum power rating of 10W.
This adapter meets the Level VI efficiency standard.
The adapter can operate in temperatures ranging from 0°C to 40°C.
Yes, it features auto-recovery short-circuit protection with no component damage.
It uses a barrel plug with dimensions of 2.1mm I.D. x 5.5mm O.D. and a length of 9.5mm.
The adapter is approved under UL 60950-1 and UL 62368-1 standards.
