| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

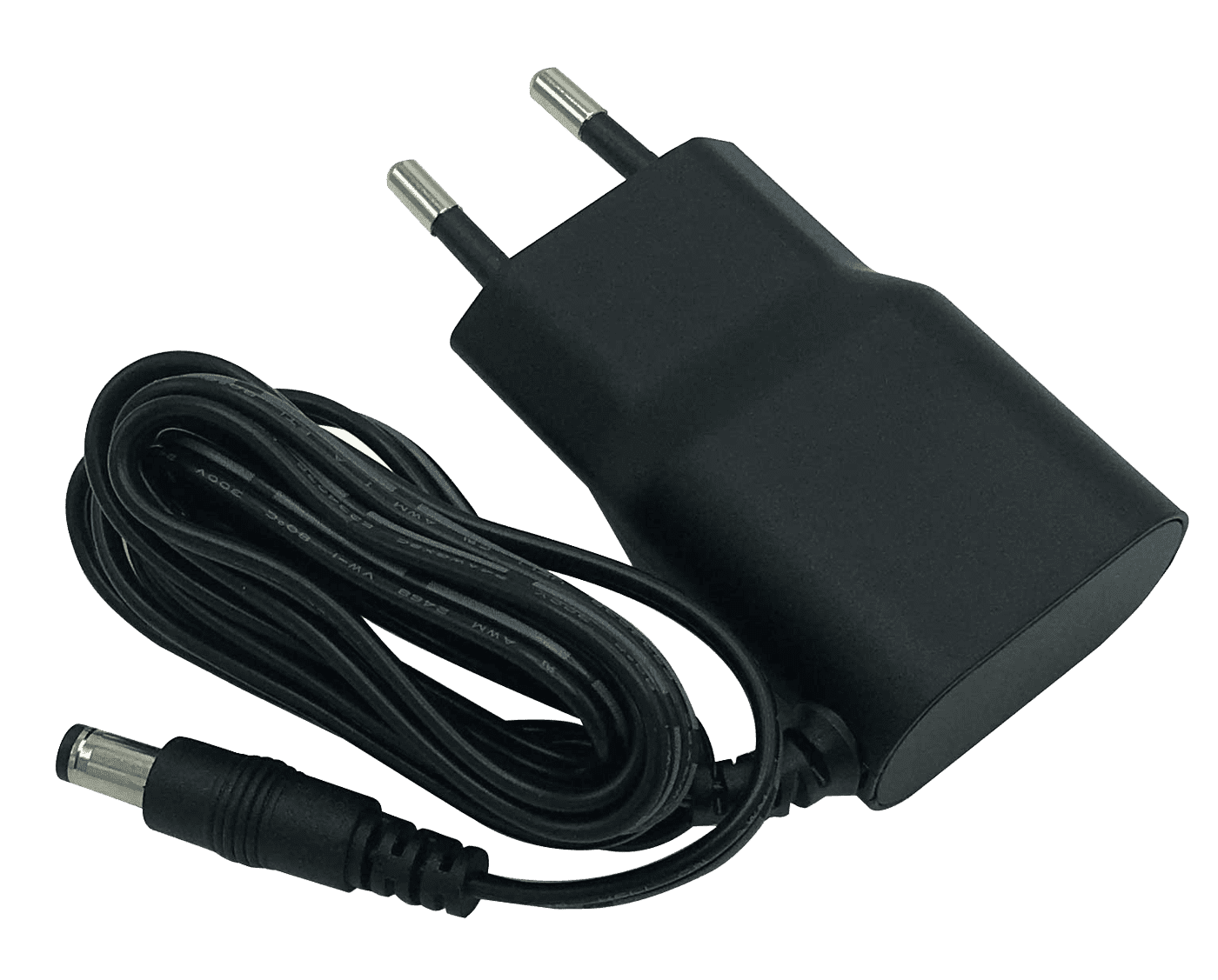

The Phihong USA AA03E-120A-R is a compact 2.75W AC/DC wall mount adapter designed for ITE (Commercial) applications. It operates with a wide input voltage range of 90 to 264VAC and provides a stable 12V DC output at 229mA.
This adapter complies with Ecodesign/ErP Lot 7 (EU) 2019/1782 and CoC Version 5 Tier 2 standards, ensuring energy efficiency with a no-load power consumption as low as 0.075W at 230VAC. It meets Class B EMI standards (EN 55032/CISPR 32) and safety standards including IEC 62368-1.
Key features include a fixed blade AC input, a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization, and a 1.50m (59") DC cord. The adapter operates within a temperature range of 0°C to 40°C and has dimensions of 58.0mm x 38.0mm x 21.0mm.
It is suitable for applications such as MPEG players, personal electronics, PDAs, and digital cameras, offering reliable power conversion in a user-friendly wall mount form factor.
The output voltage is 12V DC.
0°C to +40°C.
90 to 264 VAC.
Level VI, CoC Version 5 Tier 2.
IEC 62368-1.
2.1mm x 5.5mm x 9.5mm barrel plug, positive center.
