| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

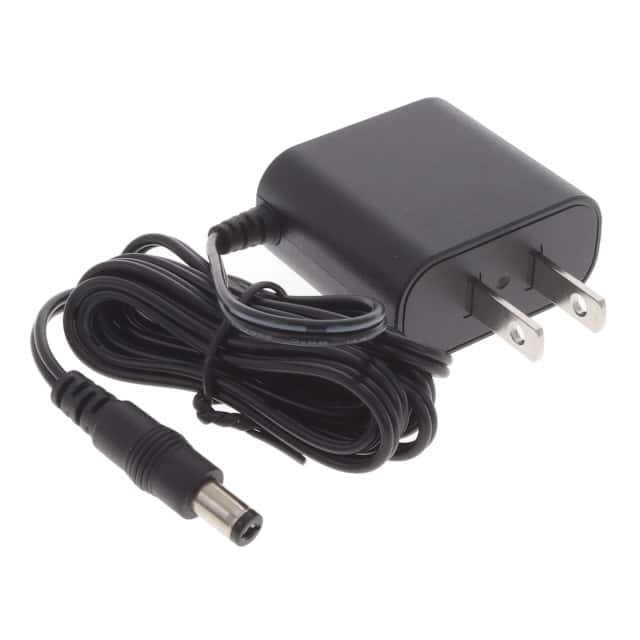

This Phihong USA AA03A-120A-R is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a 12V DC output at a maximum current of 229mA, providing a total power of 2.8W. The adapter meets Level VI efficiency standards and operates within a wide AC input voltage range of 90 to 264 VAC.
The unit features a fixed blade NEMA 1-15P input connector and a 2.1mm x 5.5mm x 9.5mm barrel plug output with positive center polarization. Its compact dimensions are 43.0mm x 39.4mm x 21.0mm, and it weighs 48g. The operating temperature range is from 0°C to 40°C.
Safety and compliance are addressed with cULus approval and adherence to standards like 62368-1. EMI emissions are compliant with FCC Part 15 Class B and CAN ICES-003(B)/NMB-003(B). The adapter includes over-voltage and short-circuit protection for reliable operation.
The AA03A-120A-R adapter provides a 12V DC output at a maximum power of 2.8W.
This adapter accepts an AC input voltage range of 90 to 264 VAC.
The adapter meets Level VI efficiency standards.
It features a fixed blade NEMA 1-15P input connector.
The adapter measures 43.0mm in length, 39.4mm in width, and 21.0mm in height.
The operating temperature range is from 0°C to 40°C.
