| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cable Length | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

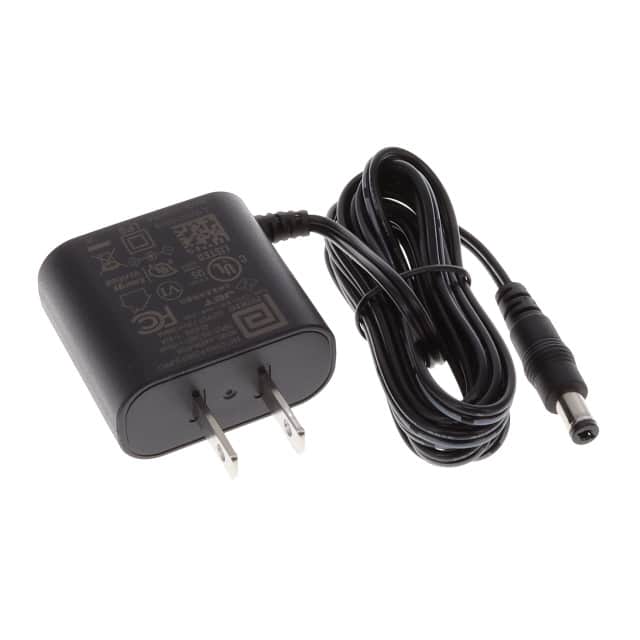

The Phihong USA AA03A-075A-R is a compact AC/DC wall mount adapter designed for various electronic applications. It provides a stable 7.5V DC output with a maximum current of 0.366A, delivering up to 2.75W of power.
This adapter meets Level VI efficiency standards, ensuring reduced energy consumption. It features a fixed blade AC input suitable for North American regions and a standard 2.1mm x 5.5mm x 9.5mm barrel plug output connector with a positive center polarization. The adapter operates within a wide AC input voltage range of 90 to 264VAC and maintains low no-load power consumption.
Designed for reliability, the AA03A-075A-R includes over-voltage and short-circuit protection. It operates in temperatures from 0°C to 40°C and complies with cULus safety standards, including IEC 62368-1. Its dimensions are 43.0mm x 39.4mm x 21.0mm, making it suitable for space-constrained designs.
Applications include MPEG players, personal electronics, PDAs, and digital cameras. The adapter's fixed blade input and standard output connector simplify integration into various systems.
90-264VAC.
7.5V DC at 366mA, 2.75W output power.
0°C to +40°C.
Wall mount (Class II) with dimensions 56.4mm x 43mm x 21mm.
Level VI.
cULus.
Barrel plug, 2.1mm ID x 5.5mm OD x 9.5mm, center positive.
