| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

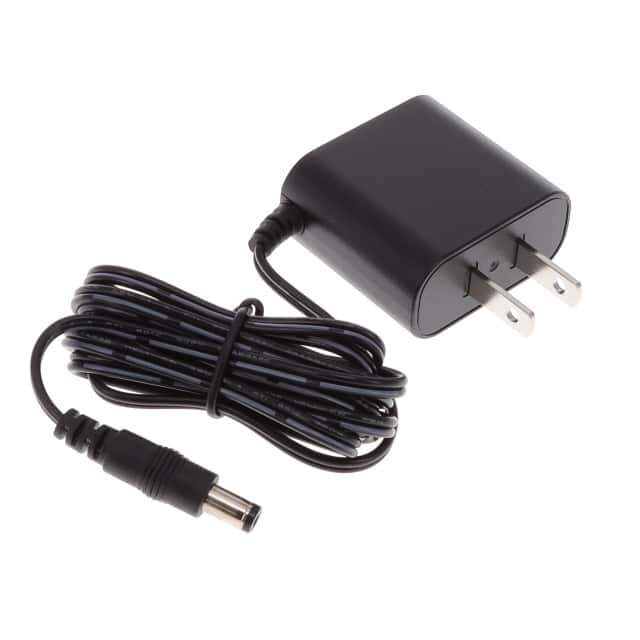

The Phihong USA AA03A-050A-R is a compact AC/DC wall mount adapter designed for various electronic applications. It provides a stable 5V DC output with a maximum current of 0.55A, delivering a total of 2.75W of power.
This adapter meets Level VI efficiency standards, ensuring optimal energy consumption. It operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz. Key features include Class B EMI compliance, over-voltage protection up to 7.5V, and short-circuit protection.
The unit is housed in a wall mount (Class II) form factor with a NEMA 1-15P input connector. The DC output is delivered via a 2.1mm x 5.5mm x 9.5mm barrel plug with a positive center polarization. The integrated cable measures 1.50 meters (59 inches) in length. The adapter operates reliably within an ambient temperature range of 0°C to 40°C.
The adapter provides a 5V DC output voltage with a maximum current of 0.55A.
The adapter has an output power of 2.75W.
The adapter accepts an AC input voltage range from 90 to 264VAC.
The adapter meets Level VI efficiency standards.
The adapter can operate in temperatures ranging from 0°C to 40°C.
It uses a 2.1mm x 5.5mm x 9.5mm barrel plug connector.
Yes, the output can be shorted without damage, indicating short circuit protection.
