| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Ratings | |
| Type | |
| Width |

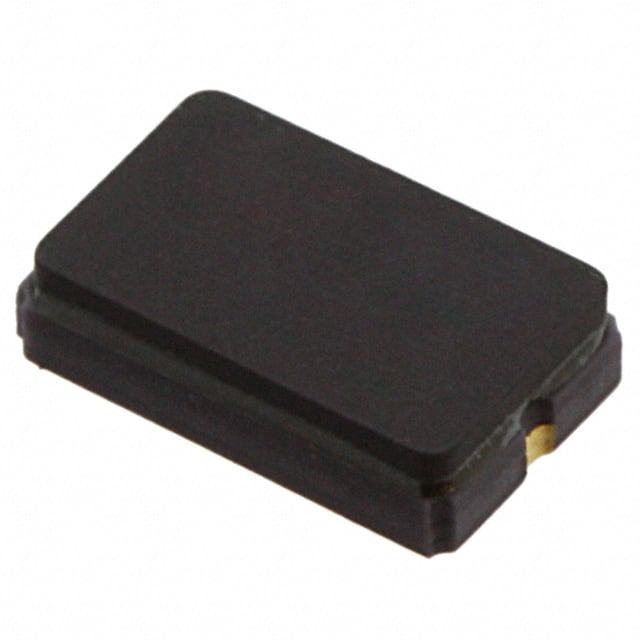

The AA-8.192MAGE-T is a fundamental mode quartz crystal designed for reliable frequency generation in electronic circuits.
It operates at a nominal frequency of 8.192 MHz with a load capacitance of 12pF, making it suitable for microcontroller clock circuits and communication systems. The crystal offers a frequency tolerance of ±30ppm and frequency stability of ±50ppm over the full operating temperature range of -40°C to +85°C.
It is housed in a compact 2-SMD, no lead package measuring 5.00mm x 3.20mm x 1.35mm, suitable for surface mount assembly. With an equivalent series resistance of 150Ω maximum, it provides efficient oscillation. The device is AEC-Q200 qualified, indicating its suitability for automotive electronics. It is RoHS compliant and REACH unaffected, meeting environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.71 | $0.71 |
| 25+ | $0.68 | $0.68 |
| 50+ | $0.65 | $0.65 |
| 100+ | $0.62 | $0.62 |
| 250+ | $0.59 | $0.59 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.54 | $0.54 |
| 2,000+ | $0.52 | $0.52 |
| 3,000+ | $0.50 | $0.50 |
| 5,000+ | $0.49 | $0.49 |
| 7,000+ | $0.48 | $0.48 |
| 10,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8.192 MHz
12pF
±30ppm
-40°C to 85°C
Yes, it is AEC-Q200 rated.
5.00mm x 3.20mm x 1.35mm (2-SMD, No Lead)
Yes, RoHS3 compliant (unverified)
