A8434EESTR-T The Allegro MicroSystems A8434EESTR-T is a 6-output LED driver IC with a charge pump topology. It operates from a 2.7V to 5.5V supply and delivers up to 30mA per channel.
Mfr Part #:

A8434EESTR-T

Available from 2 distributors
Mfr Name: Allegro Microsystems
Allegro Microsystems
The Allegro MicroSystems A8434EESTR-T is a 6-output LED driver IC with a charge pump topology. It operates from a 2.7V to 5.5V supply and delivers up to 30mA per channel.
✓ Total Stock: 5,170 pcs
$ Price Range: $0.17

A8434EESTR-T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,670 pcs
On Request
3670 pcs On Request 1 On Request On Request 09+ On Request On Request
Rayichip ✓
Non-Authorised Inventory information
1,500 pcs
On Request
1500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A8434EESTR-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Dimming
Frequency
Internal Switch(s)
Mounting Type
Number of Outputs
Operating Temperature
SVHC Present
Supplier Device Package
Topology
Type
Voltage
View Similar Products (0)

A8434EESTR-T Description

Short technical summary and product information.

The A8434EESTR-T from Allegro MicroSystems is a high-efficiency charge pump IC designed for driving white LEDs (WLEDs). It can drive up to six WLEDs, suitable for single or multiple display backlighting, or for main display backlighting combined with a low-current flash/torch.



This LED driver IC features a proprietary adaptive control scheme for well-matched WLED current, maintaining high efficiency and low EMI. It offers multi-step dimming control for brightness adjustment. The device operates over a supply voltage range of 2.7V to 5.5V and provides up to 30mA per WLED output.

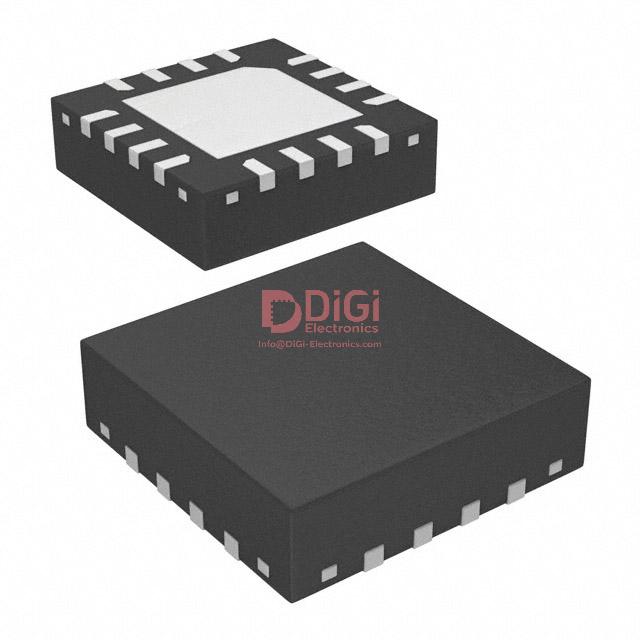

Designed for space-constrained applications, the A8434EESTR-T is available in a 16-QFN/MLP (3x3 mm) package. It supports surface mount installation and is suitable for applications such as backlighting for cellular phones, digital cameras, and portable audio devices.

A8434EESTR-T Quick Information

Product Type: LED Driver IC
Canonical Name: A8434EESTR-T LED Driver IC
Subcategory: Power Management (PMIC)

A8434EESTR-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A8434EESTR-T Estimated Pricing

Qty Low High
1+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

A8434EESTR-T Features

  • Drives up to 6 white LEDs.
  • 30mA output current per WLED.
  • 2.7V to 5.5V supply voltage range.
  • Multi-step dimming control.
  • 16-QFN/MLP (3x3mm) surface mount package.

A8434EESTR-T Applications

  • White LED backlights for portable devices.
  • Main display and sub display backlighting.
  • Low-current flash or torch applications.
  • Digital camera and camcorder backlights.

A8434EESTR-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the A8434EESTR-T?

The operating voltage range is 2.7V to 5.5V.

What is the output current per channel for this LED driver?

The output current per channel is 30mA.

How many outputs does the A8434EESTR-T have?

The A8434EESTR-T has 6 outputs.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).

What type of package is the A8434EESTR-T in?

The device is in a 16-QFN/MLP (3x3mm) package.

What mounting type is required for the A8434EESTR-T?

It requires surface mount installation.

Does this LED driver support dimming?

Yes, it supports multi-step dimming.
