| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Gold Plating Thickness | |
| Halogen Free | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| Package / Case | |
| Shielding | |
| Speed | |
| Tab Direction | |
| Termination | |
| UL |

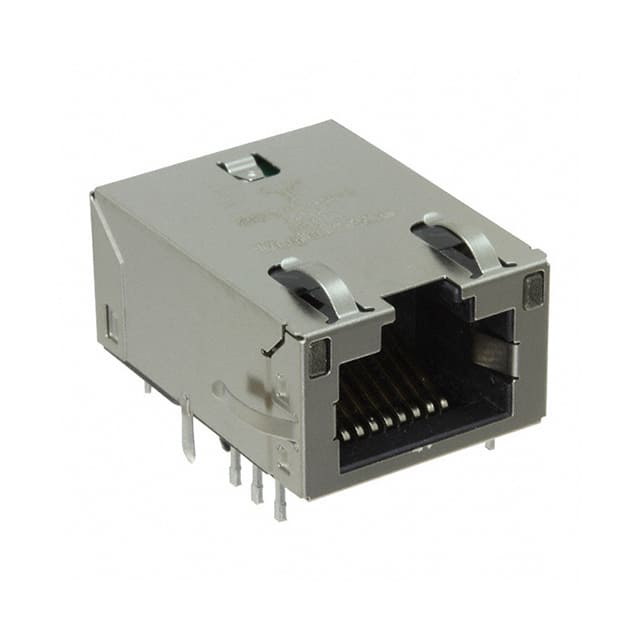

The Bel Fuse A829-1J1T-KM is a single-port RJ45 modular connector jack with integrated magnetics designed for 1GBase-T (1000 Base-TX) automotive Ethernet applications. This MagJack ICM (Integrated Connector Module) supports 10/100/1000 Base-TX with AutoMDIX, enabling flexible cable detection and correction.
Key mechanical specifications include a right-angle (90°) through-hole orientation, tab direction up, and solder termination. The connector is fully shielded with an EMI finger for enhanced electromagnetic compatibility. It has a height above board of 11.18 mm and features a board guide for secure alignment during assembly. Contacts are finished with 50 microinches of gold plating.
The A829-1J1T-KM is designed for an operating temperature range of -40°C to 100°C, making it suitable for harsh automotive environments. It incorporates green and orange-yellow LED indicators for link and activity status. The jack is UL recognized, low halogen, and lead-free wave-solder compatible, meeting RoHS 6/6 requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.57 | $7.57 |
| 10+ | $6.43 | $6.43 |
| 25+ | $6.03 | $6.03 |
| 60+ | $5.67 | $5.67 |
| 120+ | $5.40 | $5.40 |
| 300+ | $5.06 | $5.06 |
| 540+ | $4.85 | $4.85 |
| 1,020+ | $4.64 | $4.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 100°C.
Yes, it is shielded with an EMI finger.
10/100/1000 Base-TX with AutoMDIX, including 1GBase-T.
Through hole, right angle (90°), solder termination.
Green and Orange-Yellow.
RoHS 6/6, UL recognized, low halogen, lead-free.
