| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,124 pcs
|
2124 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Durability | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

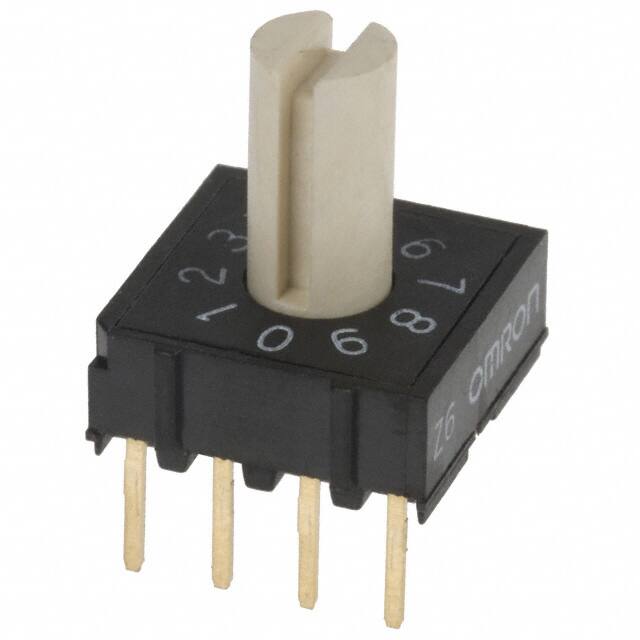

The Omron A6R-101RS is a rotary DIP switch with 10 positions and a BCD output code. It is designed for through-hole mounting and features a sealed actuator with an O-ring to prevent the ingress of dirt and dust.
This switch operates at a maximum of 25mA and 24VDC, with a minimum current rating of 10 μA at 3.5 VDC. It has a terminal pitch of 2.54mm and a height above the board of 11.80mm. The operating temperature range is from -25°C to +80°C.
Key electrical characteristics include an insulation resistance of 100 MΩ min. at 250 VDC and a contact resistance of 200 mΩ max. (initial value). The dielectric strength between terminals is 250 VAC for 1 minute. The switch is rated for 5,000 electrical steps minimum durability.
The A6R-101RS is suitable for various circuit design applications requiring precise digital input. Its robust construction and sealed design make it reliable in different environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating voltage is 24VDC.
It has 10 positions.
It comes in a DIP-10 package.
-25°C to 80°C.
Yes, it is RoHS3 compliant.
