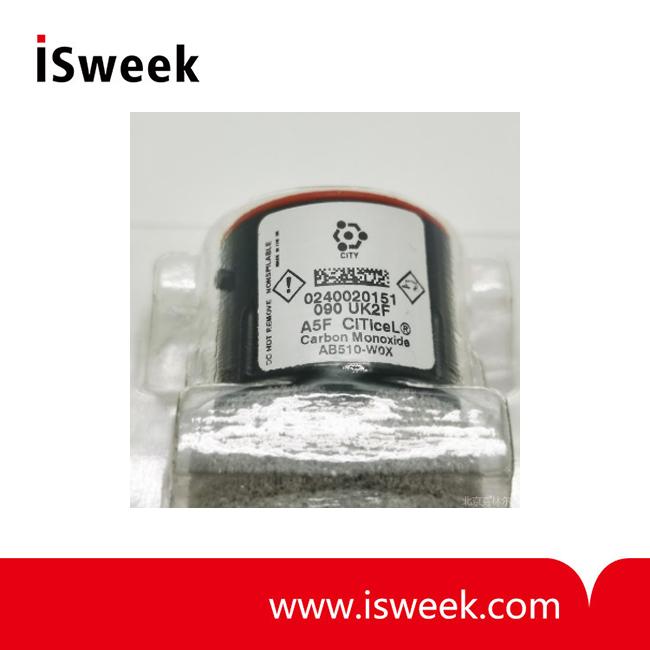

The ARTUS A5F is a Carbon Monoxide (CO) Gas Sensor designed for reliable gas detection. It operates on a 4-electrode electrochemical principle, providing a nominal measurement range of 0 to 2,000 ppm CO. The sensor can handle a maximum overload of 4,000 ppm CO and includes a filter to remove acid gases.
Key electrical specifications include a sensitivity of 75 ± 25 nA/ppm and a typical response time of T90. The baseline in clean air ranges from -2 to +17 ppm CO equivalent, with a typical baseline shift of 5 ppm CO equivalent between +20°C and +40°C. It requires a recommended load resistor of 10 Ω and supports bias voltages of 0 mV or 250 mV.
Mechanically, the A5F features an ABS housing and weighs approximately 13g. Environmentally, it operates within a temperature range of -20°C to +50°C and a humidity range of 15% to 90% non-condensing. The expected operating life is 3 years in air.
This sensor is suitable for applications requiring CO monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.79 | $6.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal range is 0 to 2,000 ppm CO.
The sensor operates between -20°C and +50°C.
The expected operating life is 3 years in air.
The housing material is ABS.
The sensitivity is 75 ± 25 nA/ppm.
