| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request | |
|
260 pcs
|
260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
209 pcs
|
209 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Dimensions | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height (Max) | |
| Impedance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| Polarization | |
| RF Family | |
| Return Loss | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| VSWR | |
| Weight |

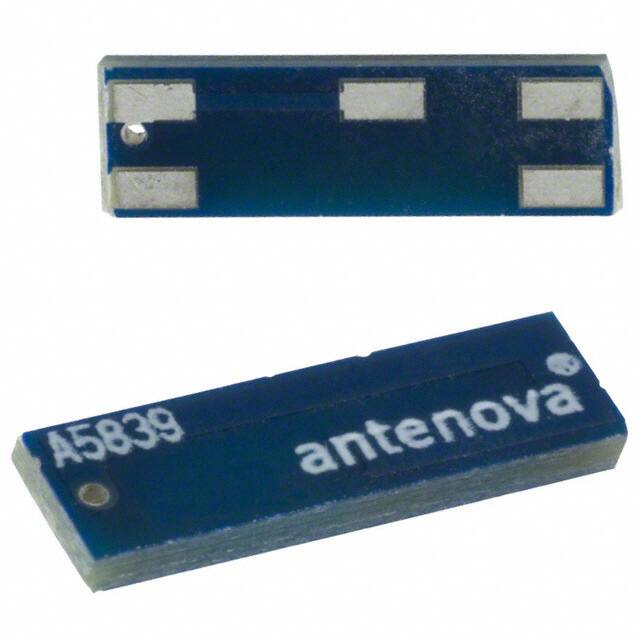

The Antenova A5839 is a Rufa series 2.4 GHz SMD antenna designed for easy integration into wireless M2M applications. This PCB trace antenna operates in the 2.4 GHz to 2.5 GHz frequency range, making it suitable for Bluetooth, Wi-Fi (802.11b/g), and ZigBee applications.
Key electrical characteristics include a maximum return loss of -11 dB and a maximum VSWR of 1.8:1. The antenna provides a peak gain of 2.1 dBi. It is intended for SMD mounting and features a low profile design.
The antenna is designed to radiate efficiently using a ground plane, but this plane must not extend underneath the antenna itself. The operating temperature range is -40 °C to +140 °C. It is supplied in tape on reel for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Antenova A5839 antenna operates in the 2.4 GHz to 2.5 GHz frequency range.
The peak gain of the A5839 antenna is 2.1 dBi.
The maximum return loss for the A5839 antenna is -11 dB.
The maximum VSWR of the Antenova A5839 is 1.8:1.
The A5839 antenna can operate between -40 °C and +140 °C.
The A5839 antenna uses surface mount technology.
