A4984SLPTR-T The Allegro MicroSystems A4984SLPTR-T is a DMOS microstepping motor driver with an integrated translator. It operates from 8V to 35V and can deliver up to 2A of output current.
Mfr Part #:

A4984SLPTR-T

Available from 3 distributors
Mfr Name: Allegro Microsystems
Allegro Microsystems
The Allegro MicroSystems A4984SLPTR-T is a DMOS microstepping motor driver with an integrated translator. It operates from 8V to 35V and can deliver up to 2A of output current.
✓ Total Stock: 13,598 pcs
$ Price Range: $2.25

A4984SLPTR-T Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
9,388 pcs
On Request
9388 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,210 pcs
On Request
1210 pcs On Request 1 On Request On Request 22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A4984SLPTR-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Operating Voltage
Output Configuration
Step Resolution
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

A4984SLPTR-T Description

Short technical summary and product information.

The A4984SLPTR-T from Allegro MicroSystems is a complete microstepping motor driver designed for bipolar stepper motors. It supports full, half, quarter, and eighth step modes, selectable via logic inputs.



This driver features an integrated translator for easy operation, requiring only one pulse on the STEP input to drive the motor one microstep. It includes automatic current decay mode detection and selection, offering both Mixed and Slow decay modes for reduced audible motor noise and improved step accuracy.



Key electrical specifications include an output drive capacity of up to 35V and ±2A, with a logic supply compatible with 3.3V and 5V systems. The device incorporates internal UVLO, crossover-current protection, thermal shutdown circuitry, and short-to-ground/load protection.

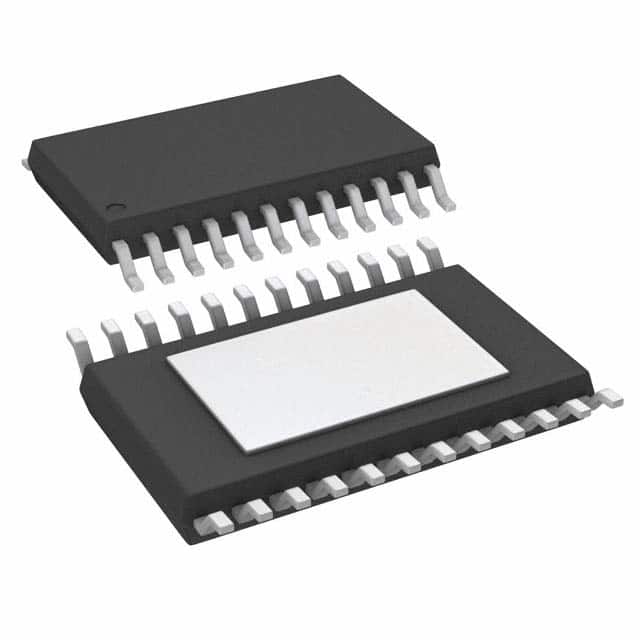

Packaged in a 24-TSSOP-EP with an exposed thermal pad, the A4984SLPTR-T is suitable for surface mount applications. It also offers a low current sleep mode with consumption below 10 µA.

A4984SLPTR-T Quick Information

Product Type: Motor Driver
Canonical Name: A4984 DMOS Microstepping Driver with Translator
Subcategory: Microstepping Driver

A4984SLPTR-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A4984SLPTR-T Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

A4984SLPTR-T Features

  • Integrated translator for easy microstepping.
  • Supports full, half, quarter, and eighth step modes.
  • Automatic Mixed and Slow current decay selection.
  • Output drive capacity up to 35V and 2A.
  • Low sleep mode current below 10 µA.

A4984SLPTR-T Applications

  • Ideal for bipolar stepper motor control.
  • Suitable for applications with limited microprocessors.
  • Enables reduced audible motor noise.
  • Provides robust protection features.

A4984SLPTR-T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the A4984SLPTR-T?

The operating voltage range is 8V to 35V.

What is the maximum output current for the A4984SLPTR-T?

The output drive capacity is up to 2A.

What step resolutions does the A4984SLPTR-T support?

It supports full, half, quarter, and eighth step modes.

What are the available current decay modes?

The device supports both Mixed and Slow current decay modes.

What is the operating temperature range?

The operating temperature range is -20°C to 150°C (TJ).

What package type is the A4984SLPTR-T supplied in?

It is supplied in a 24-TSSOP-EP package with an exposed thermal pad.
