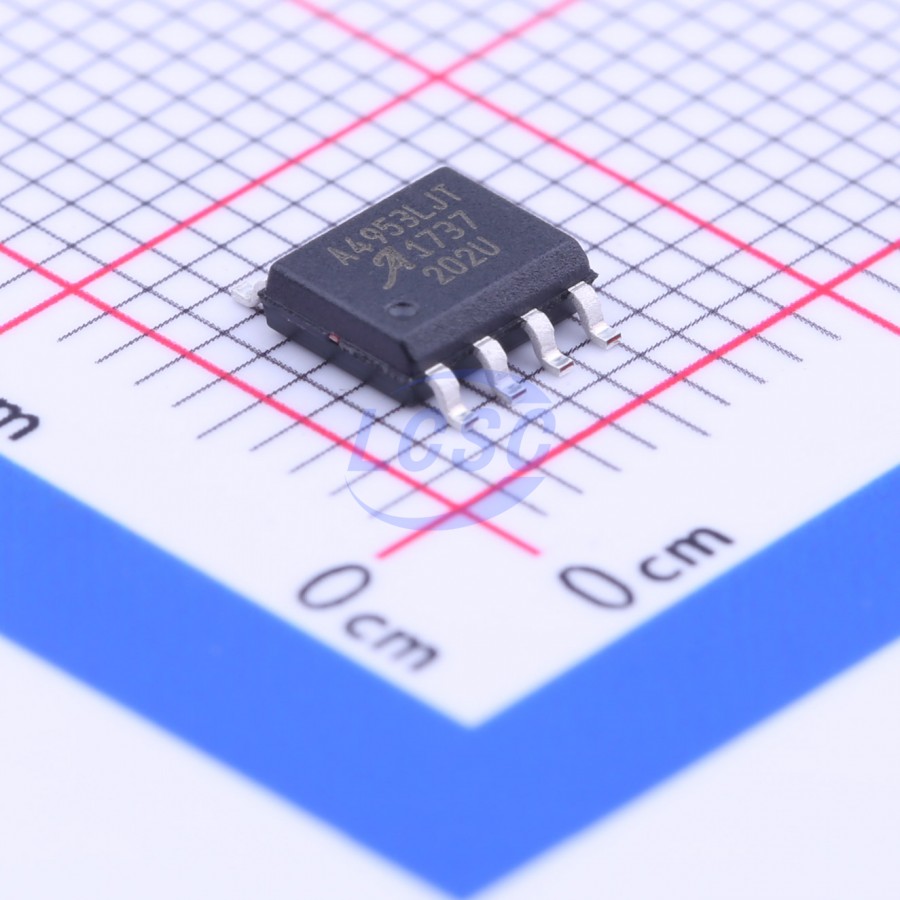

A4953ELJTR-T The Allegro Microsystems A4953ELJTR-T is a fully integrated motor driver IC designed for brushed DC motors. It operates from 8V to 40V and can handle up to 2A of current.
Mfr Part #:

A4953ELJTR-T

Available from 4 distributors
Mfr Name: Allegro Microsystems
Allegro Microsystems
The Allegro Microsystems A4953ELJTR-T is a fully integrated motor driver IC designed for brushed DC motors. It operates from 8V to 40V and can handle up to 2A of current.
✓ Total Stock: 18,851 pcs
$ Price Range: $0.77

A4953ELJTR-T Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,251 pcs
On Request
2251 pcs On Request 1 On Request On Request 15+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A4953ELJTR-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Technology
Voltage
View Similar Products (0)

A4953ELJTR-T Description

Short technical summary and product information.

The Allegro Microsystems A4953ELJTR-T is a versatile motor driver integrated circuit. It is designed for general-purpose applications requiring control of brushed DC motors.



This IC features a wide operating voltage range of 8V to 40V and a current rating of 2A. The technology used is DMOS, providing efficient power stage operation. The interface is parallel, and the output configuration includes two half-bridge drivers.



Packaged in an 8-SOIC (0.154", 3.90mm Width) Exposed Pad, the A4953ELJTR-T is suitable for surface mount applications. Its operating temperature range is -40°C to 150°C (TJ), ensuring reliability in various environmental conditions.

A4953ELJTR-T Quick Information

Product Type: Motor Driver IC
Canonical Name: A4953ELJTR-T Motor Driver IC
Subcategory: Integrated Circuit

A4953ELJTR-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A4953ELJTR-T Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

A4953ELJTR-T Features

  • Integrated control and power stage driver.
  • Operates from 8V to 40V supply voltage.
  • Handles up to 2A of current.
  • Suitable for brushed DC motors.
  • Surface mount 8-SOIC package.

A4953ELJTR-T Applications

  • Used in automotive brushed DC motor control.
  • Ideal for industrial actuator applications.
  • Suitable for robotic and automation systems.
  • Applicable for 12V/24V DC motor systems.

A4953ELJTR-T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the A4953ELJTR-T?

8V to 40V.

What package does the A4953ELJTR-T come in?

8-SOIC-EP (8-pin SOIC with exposed pad) surface mount package.

What is the operating temperature range of the A4953ELJTR-T?

-40°C to 150°C (junction temperature).

What type of motor does the A4953ELJTR-T drive?

Brushed DC motors.

What is the output current rating of the A4953ELJTR-T?

2A.

What interface does the A4953ELJTR-T use?

Parallel interface.
