| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Driven Configuration | |
| Gate Type | |
| Input Type | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Operating Voltage | |
| Rise | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

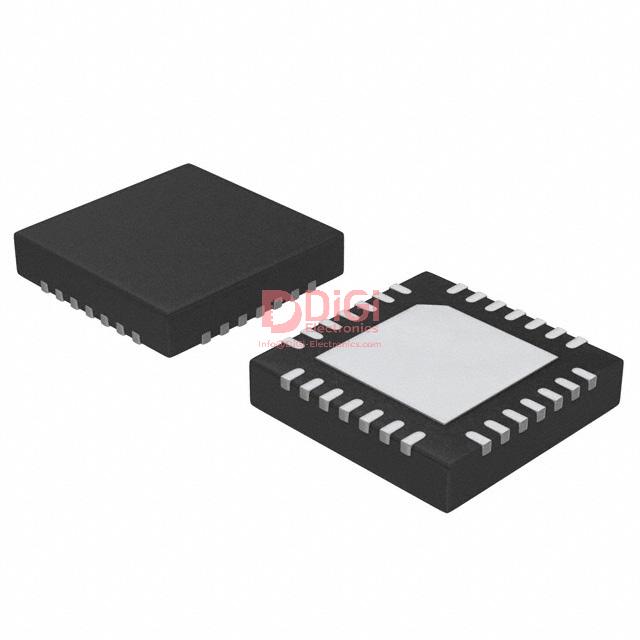

The A4919GETTR-5-T from Allegro MicroSystems is a versatile Gate Driver IC designed for high-side or low-side applications. It features a wide supply voltage range from 5.5V to 50V, making it suitable for various power management systems.
This IC supports 3-phase operation with 6 channels, utilizing N-Channel MOSFET gate types. It operates efficiently within a temperature range of -40°C to 105°C. The device is packaged in a 28-QFN (5x5) surface-mount configuration, specifically a 28-VFQFN Exposed Pad, and is supplied on tape and reel.
Key electrical characteristics include logic voltages of 0.8V and 1.5V, and rise times of 35ns and 20ns. The input type is TTL, supporting flexible integration into existing designs. This component is ideal for applications requiring precise control of MOSFET gates in power switching circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5.5V to 50V.
The operating temperature range is -40°C to 105°C.
It is available in a 28-VFQFN Exposed Pad package (28-QFN 5x5mm) for surface mount mounting.
It supports N-Channel MOSFETs.
It has 6 drivers.
The input logic type is TTL.
