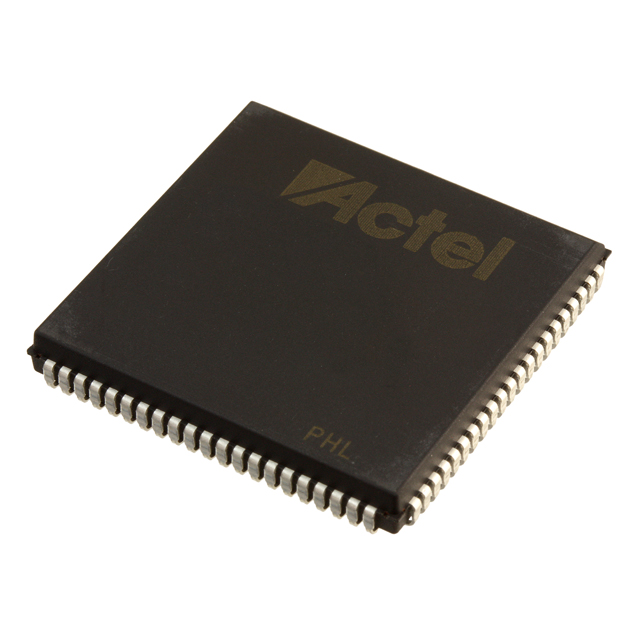

A42MX16-PLG84 The A42MX16-PLG84 is a Surface Mount FPGA from Microchip Technology, part of the MX series. It features 24,000 gates, 72 I/O, and operates over 0°C to 70°C.
Mfr Part #:

A42MX16-PLG84

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The A42MX16-PLG84 is a Surface Mount FPGA from Microchip Technology, part of the MX series. It features 24,000 gates, 72 I/O, and operates over 0°C to 70°C.
✓ Total Stock: 300 pcs

A42MX16-PLG84 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request 2026-06-01 21:33:19
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A42MX16-PLG84 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Lead Style
Mounting Type
Number of Gates
Number of I
Operating Temperature
SVHC Present
Supplier Device Package
Voltage
View Similar Products (0)

A42MX16-PLG84 Description

Short technical summary and product information.

The A42MX16-PLG84 is a Field Programmable Gate Array (FPGA) from Microchip Technology, belonging to the MX series. It integrates 24,000 gates and 72 user I/O pins, providing a flexible logic solution for embedded designs. The device supports dual supply voltage ranges: 3V to 3.6V and 4.75V to 5.25V, accommodating various system power rails. The operating temperature range is 0°C to 70°C (ambient), suitable for commercial applications.



Packaged in an 84-LCC (J-Lead) package with a supplier device package of 84-PLCC (29.31x29.31 mm), the FPGA is surface mountable for efficient board assembly. It is supplied in tube packaging. The device is RoHS3 compliant, REACH unaffected, and has a Moisture Sensitivity Level (MSL) of 3 (168 hours), requiring proper handling and storage per IPC/JEDEC standards.



With its moderate gate count and I/O flexibility, the A42MX16-PLG84 is well-suited for glue logic, interface control, and prototyping applications. Its dual voltage support simplifies integration into mixed-voltage systems.

A42MX16-PLG84 Quick Information

Product Type: FPGA (Field Programmable Gate Array)
Series: MX
Canonical Name: A42MX16-PLG84 FPGA, MX Series, 24,000 Gates, 72 I/O, 84-PLCC
Subcategory: Field Programmable Gate Array (FPGA)

A42MX16-PLG84 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected
Lead Free: Yes

A42MX16-PLG84 Features

  • 24,000 gate FPGA for logic integration.
  • 72 user I/O pins for connectivity.
  • Dual voltage supply range 3V to 5.25V.
  • Surface mount 84-PLCC package.
  • Operating temperature 0°C to 70°C.

A42MX16-PLG84 Applications

  • For logic integration in embedded systems.
  • For I/O expansion in digital designs.
  • For prototyping and production volumes.
  • Suitable for mixed-voltage interface circuits.

A42MX16-PLG84 FAQs

7 frequently asked questions generated from this part’s specifications.
How many I/O pins does the A42MX16-PLG84 have?

The A42MX16-PLG84 has 72 I/O pins.

What is the operating voltage range of the A42MX16-PLG84?

The supply voltage range is 3V to 3.6V and 4.75V to 5.25V.

What package does the A42MX16-PLG84 come in?

It comes in an 84-LCC (J-Lead) package, with supplier device package 84-PLCC (29.31x29.31 mm).

How many gates does the A42MX16-PLG84 have?

It has 24,000 gates.

What is the operating temperature range?

The operating temperature range is 0°C to 70°C (TA, ambient temperature).

What is the mounting type?

The mounting type is Surface Mount.

What series does this FPGA belong to?

It belongs to the MX series.
