| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,025 pcs
|
24025 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Bandwidth | |
| Current | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Package Name | |
| Packing Type | |
| Range ° | |
| Sensitivity (LSB | |
| Tape & Reel | |
| Type | |
| Voltage |

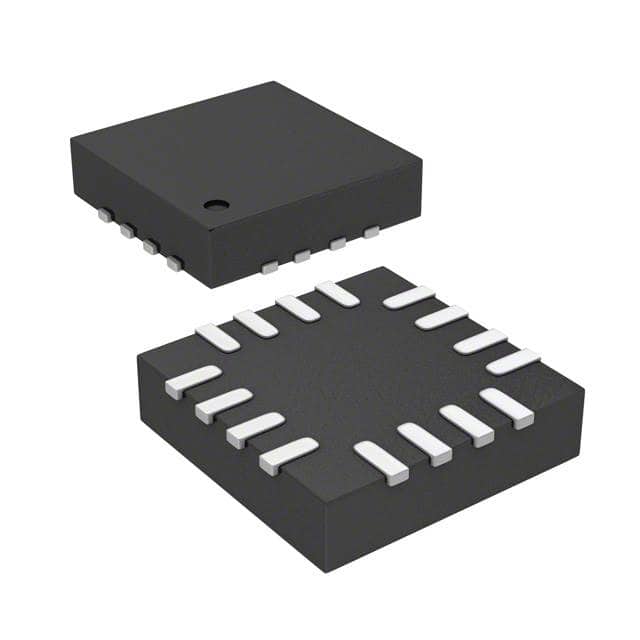

The STMicroelectronics A3G4250DTR is a MEMS motion sensor designed for precise angular rate measurement across three axes: pitch, roll, and yaw. This digital gyroscope operates with an output interface supporting both I²C and SPI protocols, making it versatile for various embedded systems.
Key electrical specifications include an operating voltage range of 2.4V to 3.6V and a current consumption of 6.1 mA. The device offers an angular rate range of ±245°/s and a selectable bandwidth from 4.45Hz to 483Hz. It also includes features such as adjustable bandwidth, sleep mode, and an integrated temperature sensor.
Packaged in a 16-TFLGA (4x4x1.1mm) format, the A3G4250DTR is suitable for surface mount applications. It operates within a temperature range of -40°C to 85°C and is RoHS3 compliant with an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C
I²C, SPI
2.4V ~ 3.6V
LGA-16
RoHS3 Compliant
1 Unlimited
