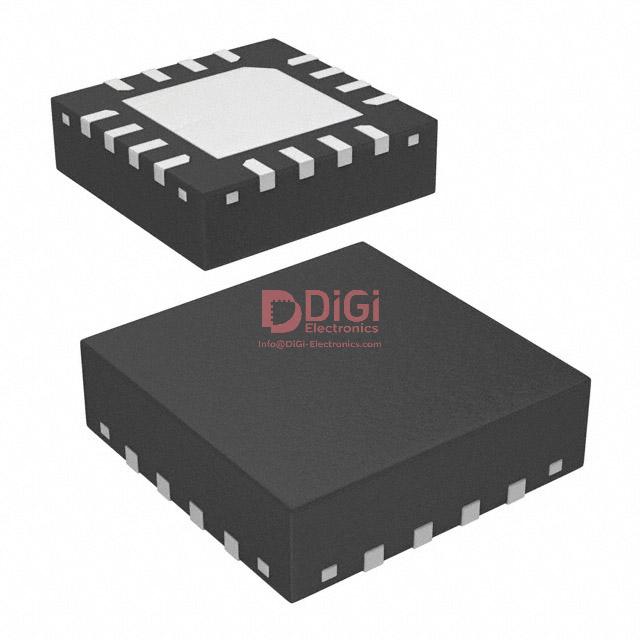

A3950SEUTR-T The Allegro MicroSystems A3950SEUTR-T is an integrated motor driver IC designed for general-purpose applications. It operates within an 8V to 36V range and handles up to 2.8A.
Mfr Part #:

A3950SEUTR-T

Available from 2 distributors
Mfr Name: Allegro Microsystems
Allegro Microsystems
The Allegro MicroSystems A3950SEUTR-T is an integrated motor driver IC designed for general-purpose applications. It operates within an 8V to 36V range and handles up to 2.8A.
✓ Total Stock: 4,571 pcs
$ Price Range: $2.25

A3950SEUTR-T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,320 pcs
On Request
2320 pcs On Request 1 On Request On Request 10+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,251 pcs
On Request
2251 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A3950SEUTR-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Technology
Voltage
View Similar Products (0)

A3950SEUTR-T Description

Short technical summary and product information.

The A3950SEUTR-T from Allegro MicroSystems is a fully integrated motor driver IC, combining control and power stages for efficient operation. It is designed for general-purpose applications and supports Brushed DC motor types.



This device features a wide operating voltage range of 8V to 36V and can deliver a continuous current of 2.8A. The technology employed is DMOS, ensuring robust performance. The output configuration is a Half Bridge (2), and it interfaces via a Parallel connection.



Packaged in a 16-QFN (4x4) format with a Surface Mount type, the A3950SEUTR-T is suitable for various integration needs. It operates within a temperature range of -20°C to 150°C (TJ).

A3950SEUTR-T Quick Information

Product Type: Motor Driver IC
Canonical Name: A3950SEUTR-T Motor Driver IC
Subcategory: Power Management IC

A3950SEUTR-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A3950SEUTR-T Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

A3950SEUTR-T Features

  • Integrated control and power stage driver.
  • Operates from 8V to 36V supply.
  • Provides 2.8A continuous current.
  • DMOS technology for performance.
  • Surface mount 16-QFN package.

A3950SEUTR-T Applications

  • Ideal for general purpose brushed DC motors.
  • Used in robotics and automation systems.
  • Suitable for consumer appliance motor drives.
  • Applicable in industrial control equipment.

A3950SEUTR-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the A3950SEUTR-T?

The supply voltage range is 8V to 36V.

What package does the A3950SEUTR-T come in?

The A3950SEUTR-T is available in a 16-WQFN exposed pad package (16-QFN 4x4mm) for surface mount.

What is the operating temperature range of the A3950SEUTR-T?

The operating junction temperature range is -20°C to 150°C.

What is the output current rating of the A3950SEUTR-T?

The continuous output current rating is 2.8A.

What type of motor can the A3950SEUTR-T drive?

It is designed for brushed DC motors.

What is the output configuration of the A3950SEUTR-T?

It features two half-bridge outputs.

What interface does the A3950SEUTR-T use?

It uses a parallel interface for control.
