| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
241 pcs
|
241 pcs | On Request | 1 | On Request | On Request | 05+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Response | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Storage Temperature | |
| Supply Current | |
| Technology | |
| Voltage |

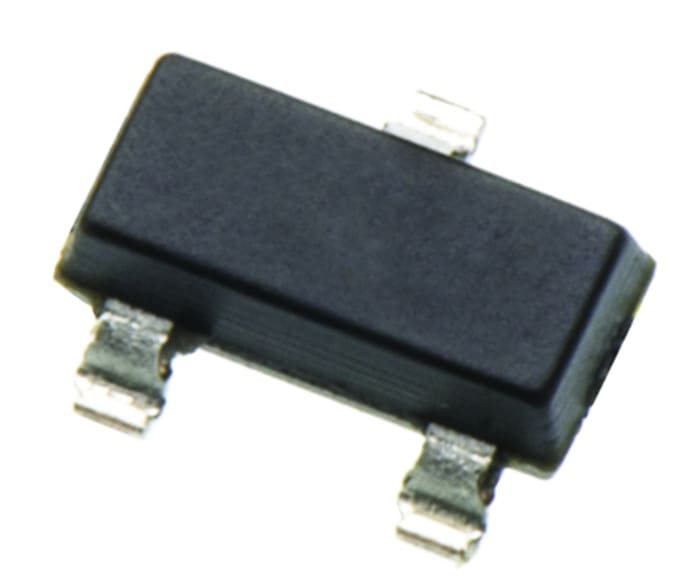

The Allegro Microsystems A3212ELHLT is a micropower, ultra-sensitive Hall-effect switch featuring a latched digital output. Designed for low power consumption, its unique clocking scheme reduces average operating power to less than 15 μW with a 2.75 V supply.
This omnipolar sensor utilizes CMOS technology with chopper stabilization for improved stability, reducing residual offset voltage. It includes a Hall-voltage generator, small-signal amplifier, latch, and a MOSFET output. The device operates within a supply voltage range of 2.5V to 3.5V and has a wide operating temperature range from -40°C to 85°C.
The A3212ELHLT is housed in a compact SOT-23 surface-mount package, making it suitable for space-constrained applications. Its high frequency response of 340kHz and a fast response time of 45μs allow for efficient signal processing. The sensor is also compliant with AEC-Q100 automotive standards.
This Hall effect switch is ideal for various sensing applications where precise magnetic field detection is required. Its robust design and wide operating parameters make it a reliable choice for industrial and automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The A3212ELHLT operates from 2.5V to 3.5V.
The operating temperature range is -40°C to 85°C.
The A3212ELHLT is available in a 3-pin SOT-23 surface-mount package.
The typical supply current is 2mA.
The maximum frequency response is 340kHz.
The typical response time is 45μs.
Yes, the A3212ELHLT is AEC-Q100 qualified.
