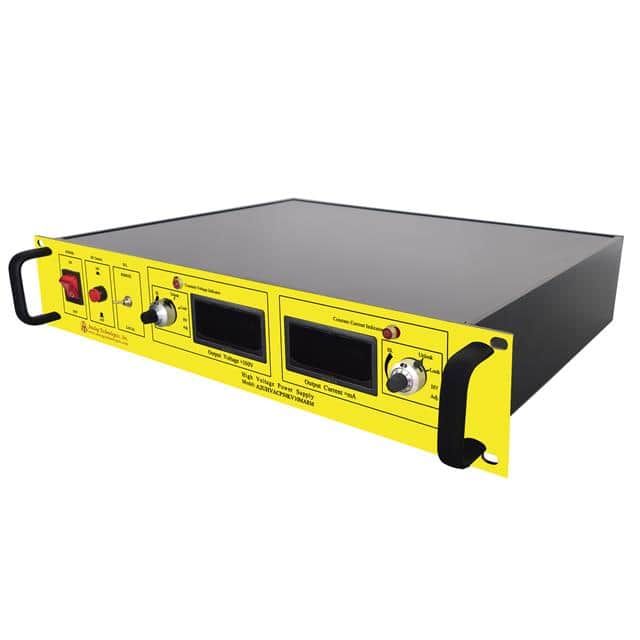

The A2UHVACP50KV10MARM from Analog Technologies is a precision, rack-mountable AC-DC high voltage power supply module. It is engineered to convert standard AC mains voltage into a stable high DC voltage output, adjustable up to 50 kV.
This power supply features a regulated output current of 10 mA, continuous linear voltage adjustment, and a front-panel digital display for real-time monitoring of voltage and current. It incorporates essential protection mechanisms, including overcurrent, arc discharge, and short-circuit protection, ensuring safe and reliable operation.
Designed for demanding industrial, laboratory, and scientific applications, the A2UHVACP50KV10MARM offers high accuracy and stability with minimal drift over time and temperature. Its modular internal design enhances reliability and facilitates system integration. The unit operates within a temperature range of 0°C to 55°C and has dimensions of 350.0mm x 300.0mm x 125.0mm.
Typical applications include ion beam injection systems, semiconductor processing, capacitor charging stations, high voltage insulation testing, electron beam welding, high-power RF transmitters, particle accelerators, lithography systems, X-ray and electrostatic applications, and scientific research apparatuses.
The A2UHVACP50KV10MARM can provide an adjustable DC output voltage up to 50 kV.
The regulated output current for the A2UHVACP50KV10MARM is 10 mA.
This power supply is designed to operate from standard AC mains voltage, specifically 100 to 230 VAC.
The A2UHVACP50KV10MARM can operate in temperatures ranging from 0°C to 55°C.
Yes, it includes integrated safeguards for overcurrent, arc discharge, and short circuits.
The dimensions are 350.0mm in length, 300.0mm in width, and 125.0mm in height.
Yes, the A2UHVACP50KV10MARM features continuous linear control for fine-tuning the high voltage output.
