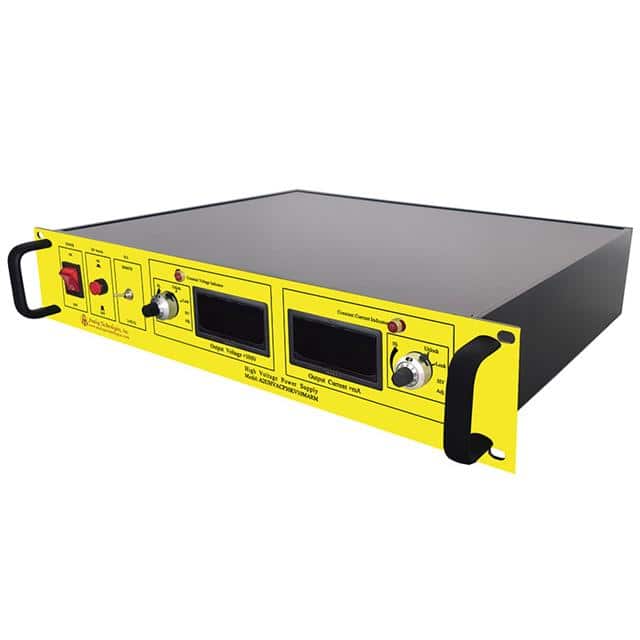

The A2UHVACP30KV10MARM from Analog Technologies is a high-performance, rack-mountable AC-DC high voltage power supply module. It is designed to convert standard AC mains voltage into a stable, high DC voltage output, adjustable up to 30 kV.
This precision power supply offers a regulated output current of 10 mA, ensuring accurate and reliable performance for demanding industrial, scientific, and research applications. Key features include high output voltage stability, linear modulation of the output voltage, and continuously adjustable output for fine-tuning. The unit incorporates essential protection mechanisms, including overcurrent, arc discharge, and short-circuit protection, to ensure safe and stable operation.
Designed for ease of integration, the A2UHVACP30KV10MARM features a modular internal design and a front-panel digital display for real-time monitoring of output voltage and current. Its industrial-grade 19-inch form factor makes it suitable for easy system installation and integration into various high voltage systems.
Typical applications include ion beam injection systems, semiconductor processing equipment, capacitor charging stations, high voltage insulation testing, electron beam welding, high-power RF transmitters, particle accelerators, lithography systems, X-ray and electrostatic applications, and scientific research apparatuses.
100 to 230 VAC.
Up to 30 kV DC at up to 10 mA.
75%.
Overcurrent, arc, and short-circuit protection.
0°C to 55°C.
482.6mm x 400.0mm x 87.9mm, rack mount, enclosed.
Yes, the output voltage is adjustable up to 30 kV DC.
