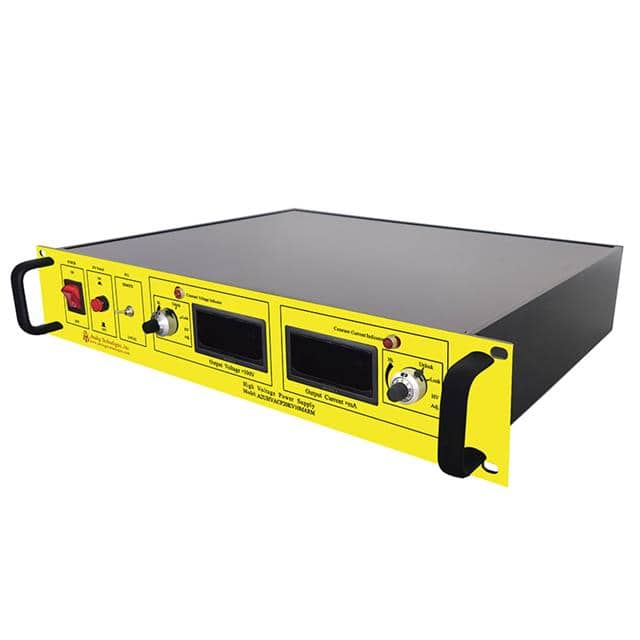

The A2UHVACP20KV10MARM from Analog Technologies is a high-performance AC-DC high voltage power supply module designed for demanding industrial, scientific, and research applications. This unit converts standard AC mains voltage into a stable, isolated high DC voltage output, adjustable up to 20 kV, with precise current regulation at 10 mA.
Key features include a continuously adjustable output voltage with high accuracy and low drift over time and temperature, linear modulation, and integrated protection against overcurrent, arc discharge, and short circuits. A front-panel digital display provides real-time monitoring of output voltage and current, facilitating convenient control and operation. The modular internal design enhances reliability and flexibility for system integration.
Designed for rack mounting, the A2UHVACP20KV10MARM features an industrial-grade 19-inch form factor for easy installation. Its applications span ion beam injection, semiconductor technology, capacitor charging, high voltage insulation testing, and scientific experiments, among others. The power supply operates within a temperature range of 0°C to 50°C and offers an efficiency of 75%.
100 to 230 VAC.
Adjustable up to 20 kV DC.
10 mA.
0°C to 50°C.
75%.
Rack mount.
482.6mm x 400.0mm x 87.9mm (19.00" x 15.75" x 3.46").
