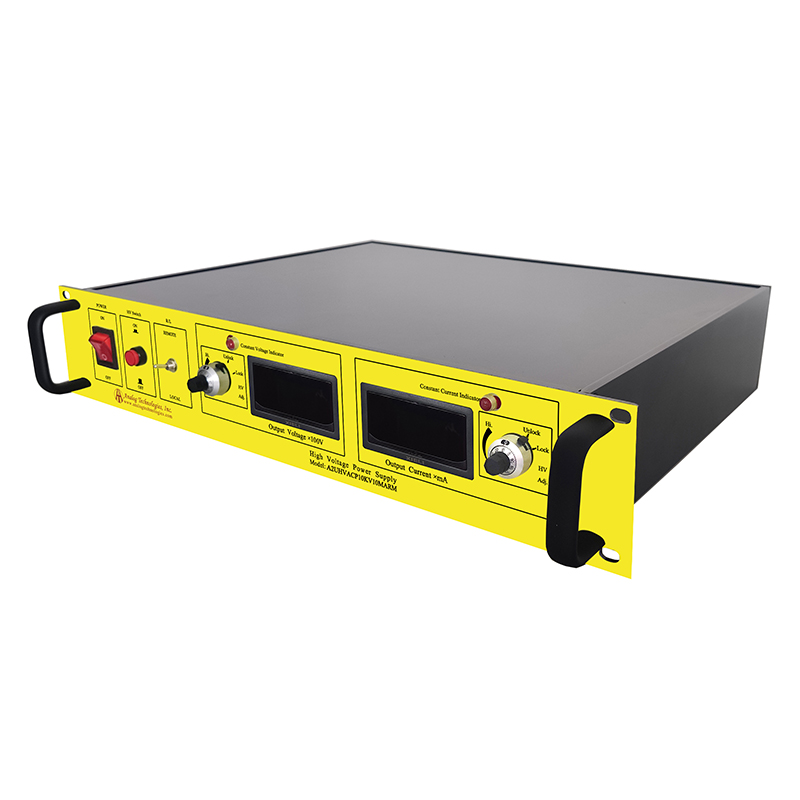

The Analog Technologies A2UHVACP10KV10MARM is a high-performance AC-DC high voltage power supply module designed for demanding industrial, scientific, and research applications. It converts standard AC mains voltage into a stable high DC voltage output, adjustable up to 10 kV.
Key electrical specifications include an output current of 10 mA with precise regulation, and an efficiency of 75%. The unit operates from an input voltage range of 100 to 230 VAC. It features continuous linear voltage adjustment for fine-tuning and a front-panel digital display for real-time monitoring of output voltage and current.
Designed for reliability and safety, the power supply incorporates overcurrent, arc, and short-circuit protection mechanisms. Its modular internal design enhances stability and allows for system integration flexibility. The operating temperature range is from 0°C to 50°C.
Mechanically, the A2UHVACP10KV10MARM is rack-mountable, featuring a 19-inch form factor (482.6mm x 400.0mm x 87.9mm). This enclosure type makes it suitable for integration into standard industrial racks. Typical applications include ion beam injection, semiconductor processing, capacitor charging, and high voltage insulation testing.
The A2UHVACP10KV10MARM has an adjustable output voltage up to 10 kV DC.
The regulated output current for the A2UHVACP10KV10MARM is 10 mA.
This power supply operates from a 100 to 230 VAC input voltage.
The efficiency of the A2UHVACP10KV10MARM is 75%.
The operating temperature range is 0°C to 50°C.
The A2UHVACP10KV10MARM is designed for rack mounting.
The power supply includes overcurrent, arc, and short-circuit protection.
