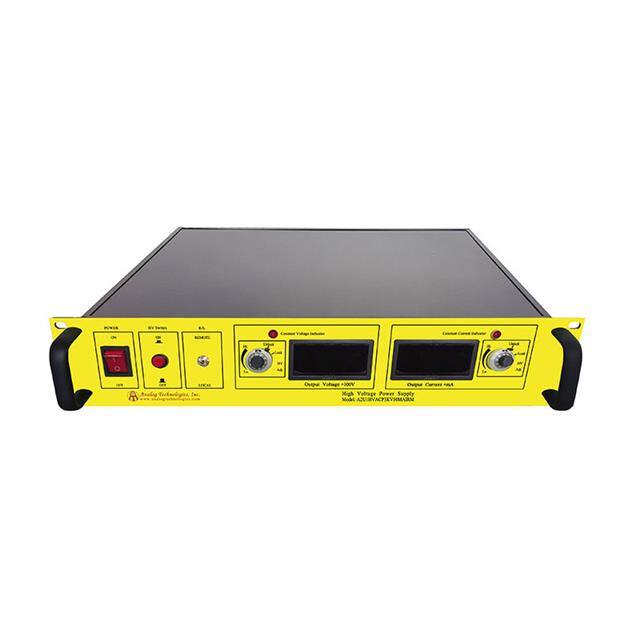

The Analog Technologies A2UHVAC3KV50MAIRM is an enclosed, rack-mount high voltage power supply designed for AC-DC conversion to isolated high DC voltage. It features a 5kV output voltage and 50mA output current, with an efficiency of 70%. The unit provides adjustable output voltage, isolation between input and output, and protection against overvoltage, overcurrent, and arcing.
This power supply is suitable for applications requiring high DC voltage, such as ion beam injection, semiconductor technology, capacitor charging, and high voltage insulation testing. Its modular design and industrial interface ensure high integration, reliability, and ease of control. The physical dimensions are 482.6mm x 350.0mm x 87.9mm.
Key features include high precision, high output voltage stability, and linear modulation of the output voltage. It also includes a digital display for output voltage and current, and OEM customization is available. Safety precautions emphasize reliable grounding and avoiding contact with high voltage wires when powered off.
The A2UHVAC3KV50MAIRM provides an output voltage of 5kV.
The output current is 50 mA.
The efficiency is 70%.
It is designed for rack mounting.
The operating temperature range is 0°C to 50°C.
It includes protection against arc, over voltage, over current, and short circuit.
