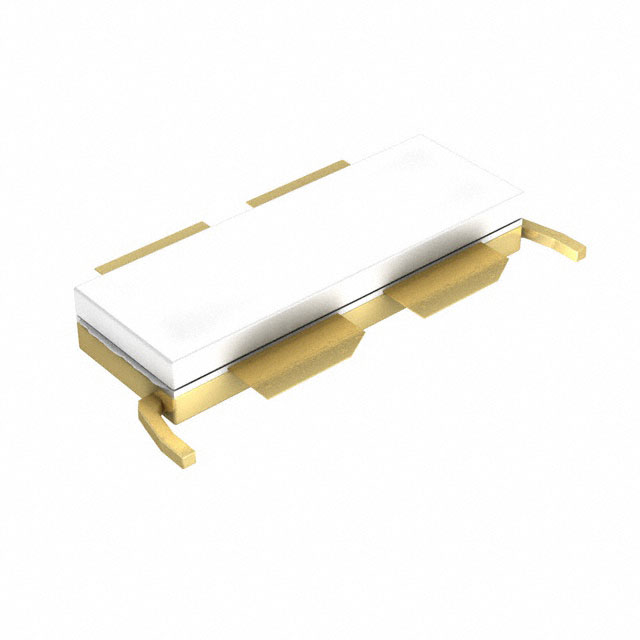

A2T07H310-24SR6 Dual LDMOS RF power transistor rated for 880MHz operation with 47W output power and 18.6dB gain. Chassis mount package NI-1230-4LS2L.
Mfr Part #:

A2T07H310-24SR6

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
Dual LDMOS RF power transistor rated for 880MHz operation with 47W output power and 18.6dB gain. Chassis mount package NI-1230-4LS2L.
✓ Total Stock: 450 pcs

A2T07H310-24SR6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
450 pcs
On Request
450 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A2T07H310-24SR6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Frequency
Gain
Mounting Type
Power
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

A2T07H310-24SR6 Description

Short technical summary and product information.

The A2T07H310-24SR6 is a dual LDMOS RF power transistor from NXP Semiconductors. It is designed for high-frequency power amplification in the 880MHz band.



Key electrical specifications include a drain voltage of 28V, a quiescent current of 700mA, and an output power of 47W with a gain of 18.6dB. The device uses LDMOS technology and features a dual configuration.



The transistor is housed in a NI-1230-4LS2L package and is intended for chassis mount installation. This package provides robust thermal and electrical performance for demanding RF applications.



Typical applications include RF power amplifier stages in wireless communication systems, broadcast transmitters, and industrial RF energy equipment.

A2T07H310-24SR6 Quick Information

Product Type: RF MOSFET Transistor
Canonical Name: RF MOSFET Transistor, Dual LDMOS, 880 MHz, 47 W, Chassis Mount

A2T07H310-24SR6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A2T07H310-24SR6 Features

  • Dual LDMOS RF power transistor.
  • Operates at 880MHz frequency.
  • Delivers 47W output power.
  • Provides 18.6dB gain.
  • Chassis mount NI-1230-4LS2L package.

A2T07H310-24SR6 Applications

  • RF power amplifier designs.
  • Wireless communication transmitters.
  • Industrial RF energy applications.

A2T07H310-24SR6 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage?

28V

What is the package type?

NI-1230-4LS2L

Is this component RoHS compliant?

RoHS3 Compliant (unverified)

What is the operating frequency?

880MHz

What is the output power?

47W

What is the gain?

18.6dB

What is the mounting type?

Chassis Mount
