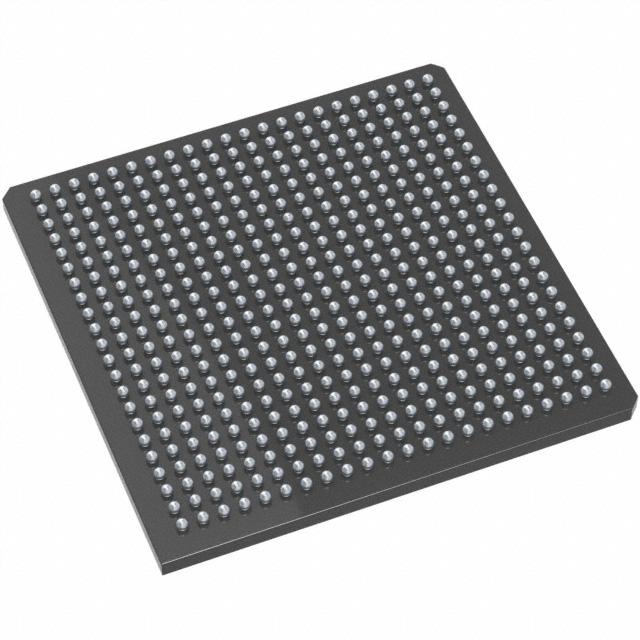

A2F500M3G-FGG484M The A2F500M3G-FGG484M is a System-on-Chip (SoC) from Microchip Technology combining an ARM Cortex-M3 MCU with a ProASIC3 FPGA. It operates at 80MHz, features 512KB Flash and 64KB RAM, and is housed in a 484-FPBGA package.
Mfr Part #:

A2F500M3G-FGG484M

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The A2F500M3G-FGG484M is a System-on-Chip (SoC) from Microchip Technology combining an ARM Cortex-M3 MCU with a ProASIC3 FPGA. It operates at 80MHz, features 512KB Flash and 64KB RAM, and is housed in a 484-FPBGA package.
✓ Total Stock: 60 pcs

A2F500M3G-FGG484M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A2F500M3G-FGG484M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Connectivity
Core Processor
Failure Rate
Flash Size
Lead Style
Operating Temperature
Peripherals
Primary Attributes
RAM Size
Speed
Supplier Device Package
View Similar Products (0)

A2F500M3G-FGG484M Description

Short technical summary and product information.

The A2F500M3G-FGG484M is a System-on-Chip (SoC) device from Microchip Technology, part of the SmartFusion series. It integrates an ARM Cortex-M3 processor core running at 80MHz with a ProASIC3 FPGA featuring 500K gates and 11520 D-Flip-Flops. The MCU subsystem includes 512KB of Flash memory and 64KB of RAM, along with peripherals such as DMA, POR, and WDT. Connectivity options include EBI/EMI, Ethernet, I2C, SPI, and UART/USART. The device provides 41 MCU I/Os and 128 FPGA I/Os, enabling flexible system design. The operating temperature range is -55°C to 125°C, suitable for harsh environments. The SoC is packaged in a 484-BGA (484-FPBGA 23x23) package and is supplied in tray packaging. It is compliant with ROHS3 and REACH unaffected, with an MSL rating of 3 (168 hours). This SoC is ideal for applications requiring both microcontroller flexibility and programmable logic in a single device.

A2F500M3G-FGG484M Quick Information

Product Type: System On Chip (SoC)
Series: SmartFusion
Canonical Name: A2F500M3G-FGG484M - SmartFusion SoC with ARM Cortex-M3 and ProASIC3 FPGA
Subcategory: SoC with FPGA

A2F500M3G-FGG484M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

A2F500M3G-FGG484M Features

  • Integrated ARM Cortex-M3 core running at 80MHz.
  • ProASIC3 FPGA with 500K gates and 11520 D-Flip-Flops.
  • 512KB Flash and 64KB RAM for MCU firmware.
  • Wide operating temperature range from -55°C to 125°C.
  • Multiple connectivity options: Ethernet, I2C, SPI, UART/USART.

A2F500M3G-FGG484M Applications

  • Ideal for industrial control systems combining MCU and FPGA logic.
  • Used in communications infrastructure requiring both processing and programmable logic.
  • Suitable for aerospace and defense applications due to wide temperature range.
  • Employed in embedded systems needing custom hardware acceleration.

A2F500M3G-FGG484M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor and its speed?

The core processor is an ARM Cortex-M3 running at 80 MHz.

How much flash and RAM does the SoC have?

It has 512 KB of flash memory and 64 KB of RAM.

What FPGA resources are available?

The ProASIC3 FPGA provides 500,000 gates and 11,520 D-flip-flops.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C (TJ).

What package options are available?

The device comes in a 484-ball FPBGA package (23x23 mm) and also as 484-BGA.

Is the device RoHS compliant?

The device is marked as ROHS3 compliant per the manufacturer page.

What connectivity interfaces does it support?

It supports EBI/EMI, Ethernet, I2C, SPI, and UART/USART interfaces.
