Mfr Part #:

A2C25S12M3

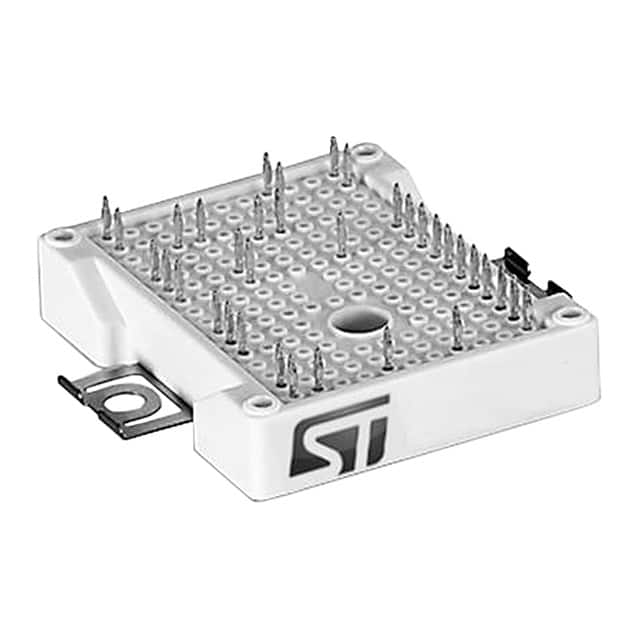

Name: A2C25S12M3
Brand: STMicroelectronics
SKU: A2C25S12M3

Mfr Name: STMicroelectronics

Description:

IGBT MOD 1200V 25A 197W ACEPACK2

Stock on Request

A2C25S12M3 Description

Short technical summary and product information.

IGBT MOD 1200V 25A 197W ACEPACK2

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

A2C25S12M3-F

STMicroelectronics

IGBT MOD 1200V 25A 197W ACEPACK2

Category	Transistors - IGBTs - Modules
Manufacturer Name	STMicroelectronics
Configuration	Three Phase Inverter with Brake
Current	25 A
IGBT Type	Trench Field Stop
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	1.55 nF @ 25 V
Mounting Type	Chassis Mount
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Power	197 W
Supplier Device Package	ACEPACK 2
Vce(on) (Max) @ Vge, Ic	2.45V @ 15V, 25A
Voltage	1200 V
